Texas Instruments

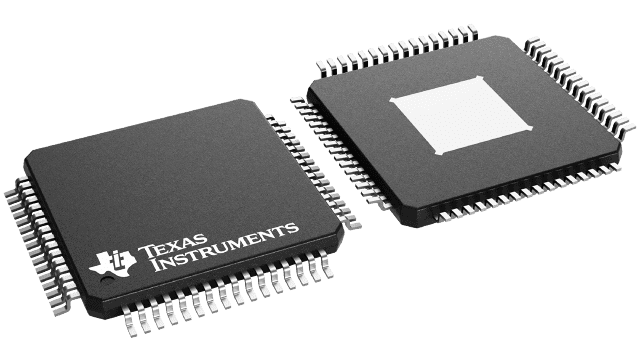

TUSB4041IPAPRQ1
TUSB4041IPAPRQ1
Couldn't load pickup availability
TUSB4041IPAPRQ1 Texas Instruments - Yeehing Electronics
Automotive 4-port high-speed 480-Mbps USB 2.0 hub
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 6.23 |
| 100 — 249 | 5.079 |
| 250 — 999 | 3.992 |
| 1,000 + | 2.37 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Minimum Operating Temperature | -40 |
| Maximum Operating Temperature | 85 |
| Factory Pack Quantity | 1,000 |
| Package | Pins | HTQFP (PAP) | 64 |
For more information, please refer to datasheet
Documents
| TUSB4041IPAPRQ1 Datasheet |
More Information
The TUSB4041I-Q1 device is a four-port USB 2.0 hub. The device provides USB high-speed or full-speed connections on the upstream port. The device also provides USB high-speed, full-speed, or low-speed connections on the downstream ports. When the upstream port is connected to an electrical environment that only supports high-speed, full-speed, and low-speed connections, the USB high-speed, full-speed and low-speed connectivity is enabled on the downstream ports. When the upstream port is connected to an electrical environment that only supports full-speed or low-speed connections, the USB high-speed connectivity are disabled on the downstream ports.
