Texas Instruments
TUSB501DRFR
TUSB501DRFR
Regular price
$0.51 USD
Regular price
Sale price
$0.51 USD
Unit price
per
Couldn't load pickup availability
TUSB501DRFR Texas Instruments - Yeehing Electronics
USB 3.0 5Gbps Single-Channel redriver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.511 |
| 100 — 249 | 2.2 |
| 250 — 999 | 1.543 |
| 1,000 + | 0.51 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | USB Interface IC |
| RoHS | Y |
| Mounting Style | SMD/SMT |

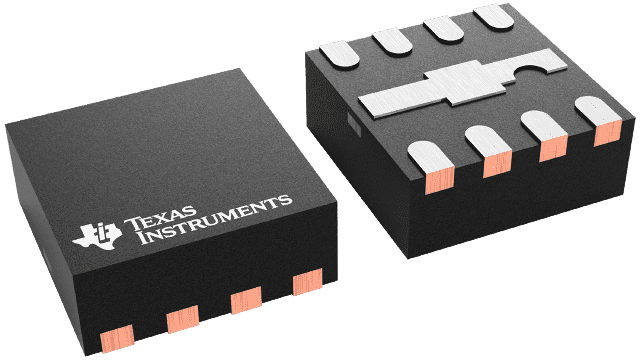

| Package / Case | WSON-8 |
| Series | TUSB501 |
| Product | USB Redrivers |
| Standard | USB 3.0 |
| Operating Supply Current | 65 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | USB Interface IC |
| Factory Pack Quantity | 3000 |
| Subcategory | Interface ICs |
| Unit Weight | 0.000384 oz |
For more information, please refer to datasheet
Documents
| TUSB501DRFR Datasheet |
More Information
The TUSB501 is a 3rd generation 3.3-V USB 3.0 single-channel redriver. When 5 Gbps SuperSpeed USB signals travel across a PCB or cable, signal integrity degrades due to loss and inter-symbol interference. The TUSB501 recovers incoming data by applying equalization that compensates channel loss, and drives out signals with a high differential voltage. This extends the possible channel length, and enables systems to pass USB 3.0 compliance. The TUSB501 advanced state machine makes it transparent to hosts and devices.
