Texas Instruments
TUSB501TDRFRQ1
TUSB501TDRFRQ1
Regular price
$1.01 USD
Regular price
Sale price
$1.01 USD
Unit price
per
Couldn't load pickup availability

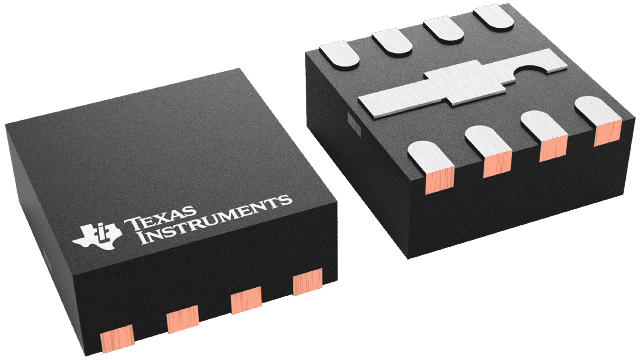

TUSB501TDRFRQ1 Texas Instruments - Yeehing Electronics
Automotive USB 3.0 5-Gbps single-channel redriver
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.903 |
| 100 — 249 | 2.543 |
| 250 — 999 | 1.783 |
| 1,000 + | 1.01 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | USB Interface IC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | SON-8 |
| Series | TUSB501-Q1 |
| Product | USB Redrivers |
| Type | Redriver |
| Standard | USB 3.0 |
| Speed | Super Speed |
| Data Rate | 5 Gb/s |
| Operating Supply Current | 65 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Qualification | AEC-Q100 |
| Packaging | Reel |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Product Type | USB Interface IC |
| Factory Pack Quantity | 3000 |
| Subcategory | Interface ICs |
| Unit Weight | 0.000420 oz |
For more information, please refer to datasheet
Documents
| TUSB501TDRFRQ1 Datasheet |
More Information
The TUSB501-Q1 is a 3rd generation 3.3-V USB 3.0 single-channel redriver. When 5 Gbps SuperSpeed USB signals travel across a PCB or cable, signal integrity degrades due to loss and inter-symbol interference. The TUSB501-Q1 recovers incoming data by applying equalization that compensates channel loss, and drives out signals with a high differential voltage. This extends the possible channel length, and enables systems to pass USB 3.0 compliance. The TUSB501-Q1 advanced state machine makes it transparent to hosts and devices.
