TUSB546AI-DCIRNQT Texas Instruments - Yeehing Electronics
USB Type-C™ 8.1-Gbps multi-protocol linear redriver crosspoint switch for source side
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 5.117 |
| 100 — 249 | 4.172 |
| 250 — 999 | 3.279 |
| 1,000 + | 1.95 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | USB Interface IC |
| RoHS | Y |
| Mounting Style | SMD/SMT |

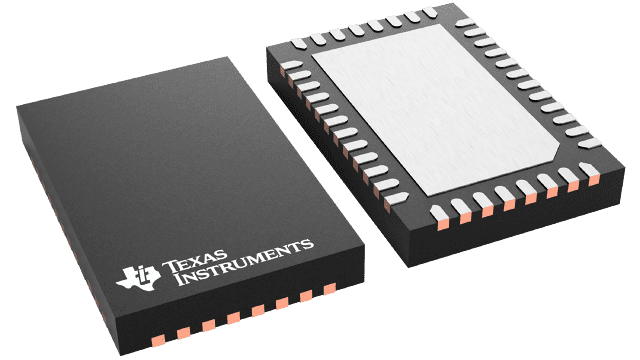

| Package / Case | WQFN-40 |
| Series | TUSB546A-DCI |
| Product | USB Redrivers |
| Type | Linear Redriver Crosspoint Switch |
| Port Type | DFP |
| Standard | USB 3.1 |
| Speed | Super Speed |
| Data Rate | 5 Gb/s |
| Supply Voltage - Min | 3 V |
| Supply Voltage - Max | 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Brand | Texas Instruments |
| Interface Type | I2C |
| Development Kit | TUSB546EVM |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 3 V to 3.6 V |
| Product Type | USB Interface IC |
| Protocol Supported | Alternate Mode |
| Factory Pack Quantity | 250 |
| Subcategory | Interface ICs |
| Tradename | USB Type-C |
| Unit Weight | 0.002610 oz |
For more information, please refer to datasheet
Documents
| TUSB546AI-DCIRNQT Datasheet |
More Information
The TUSB546A-DCI is a VESA USB Type-C™ Alt Mode redriving switch supporting USB 3.1 data rates up to 5 Gbps and DisplayPort 1.4 up to 8.1 Gbps for downstream facing port (Host). The device is used for configurations C, D, E, and F from the VESA DisplayPort Alt Mode on USB Type-C Standard Version 1.1. This protocol-agnostic linear redriver is also capable of supporting other USB Type-C Alt Mode interfaces.
