Description

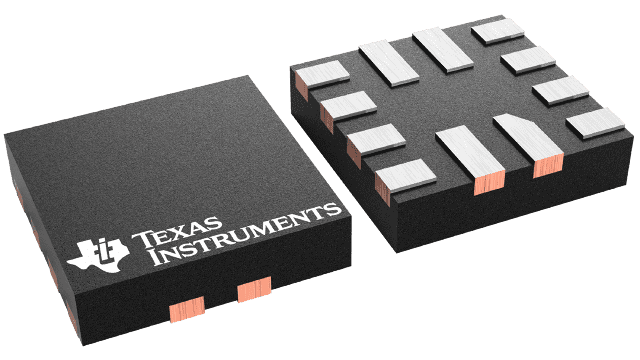

TUSB551RWBR Texas Instruments - Yeehing Electronics
USB 3.0 Single-Channel redriver with 1.8V Supply
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.8 |
100 — 249 | 2.453 |
250 — 999 | 1.72 |
1,000 + | 0.82 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Interface - Signal Buffers, Repeaters |
RoHS | Y |
Product | Redrivers |
Propagation Delay Time | 278 ps |
Maximum Clock Frequency | 2.5 GHz |
Operating Supply Voltage | 1.8 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | X2QFN-12 |
Packaging | Reel |
Series | TUSB551 |
Brand | Texas Instruments |
Interface Type | USB3.0 |
Moisture Sensitive | Yes |
Operating Supply Current | 72 mA |
Product Type | Signal Buffers, Repeaters |
Factory Pack Quantity | 3000 |
Subcategory | Interface ICs |
Unit Weight | 0.000176 oz |
For more information, please refer to datasheet
Documents
TUSB551RWBR Datasheet |
More Information
The TUSB551 is a 4th-generation USB3.0 SuperSpeed (SS) re-driver that features a 1.8V power supply with low consumption, superior output drive performance, and automatic LFPS De-Emphasis control for full USB 3.0 compliance. The re-driver offers selectable gain settings in the equalizer to account for channel loss. These settings are controlled by the EQ terminal. To compensate for downstream transmission line losses, the output driver supports configuration of De-Emphasis and Output Swing (terminals DE and OS). These settings allow optimal performance, increased signaling distance, and flexibility in placement of the TUSB551 in the SuperSpeed USB path.
