Texas Instruments
TUSB564RNQR
TUSB564RNQR
Regular price
$0.82 USD
Regular price
Sale price
$0.82 USD
Unit price
per
Couldn't load pickup availability
TUSB564RNQR Texas Instruments - Yeehing Electronics
USB Type-C™ 8.1-Gbps DP Alt Mode linear redriver crosspoint switch for sink side
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.252 |
| 100 — 249 | 2.85 |
| 250 — 999 | 1.998 |
| 1,000 + | 0.82 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | USB Interface IC |
| RoHS | Y |
| Mounting Style | SMD/SMT |

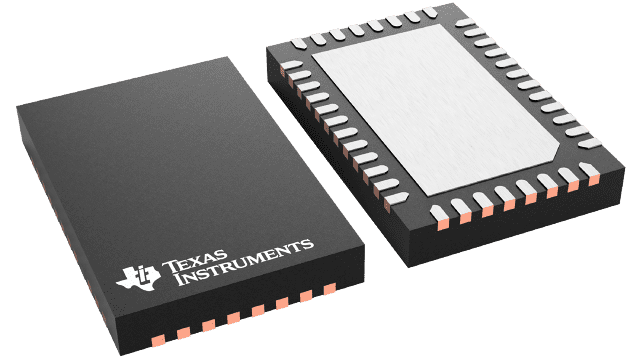

| Package / Case | WQFN-40 |
| Series | TUSB564 |
| Product | USB Redrivers |
| Type | USB Linear Redriver |
| Port Type | UFP |
| Standard | USB 3.1 |
| Speed | Super Speed |
| Data Rate | 5 Gb/s |
| Supply Voltage - Min | 3 V |
| Supply Voltage - Max | 3.6 V |
| Operating Supply Current | - |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Brand | Texas Instruments |
| Interface Type | I2C |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 3.3 V |
| Product Type | USB Interface IC |
| Protocol Supported | Alternate Mode |
| Factory Pack Quantity | 3000 |
| Subcategory | Interface ICs |
| Tradename | USB TYPE-C |
For more information, please refer to datasheet
Documents
| TUSB564RNQR Datasheet |
More Information
The TUSB564 s a VESA USB Type-C™ Alt Mode redriving switch supporting USB 3.1 data rates up to 5 Gbps and DisplayPort 1.4 up to 8.1 Gbps for upstream facing port (Sink). The device is used for UFP_D pin assignments C, D, and E from the VESA DisplayPort Alt Mode on USB Type-C Standard.
