TUSB8020BIPHPQ1 Texas Instruments - Yeehing Electronics

Automotive Two-Port SuperSpeed 5.0Gbps USB 3.0 Hub

Pricing (USD)

Quantity	Unit Price
1 — 99	7.29
100 — 249	5.943
250 — 999	4.671
1,000 +	2.77

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	USB Interface IC
RoHS	Y
Mounting Style	SMD/SMT

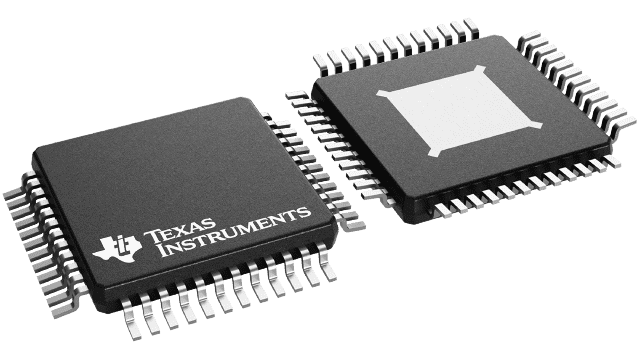

Package / Case	HTQFP-48
Series	TUSB8020B-Q1
Product	USB Hubs
Type	Hub Controller
Standard	USB 3.0
Speed	Super Speed
Data Rate	5 Gb/s
Operating Supply Current	15 uA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Qualification	AEC-Q100
Packaging	Tube
Brand	Texas Instruments
Interface Type	I2C, SMBus
Number of Ports	2 Port
Moisture Sensitive	Yes
Operating Supply Voltage	1.1 V, 3.3 V
Product Type	USB Interface IC
Factory Pack Quantity	250
Subcategory	Interface ICs
Unit Weight	0.004744 oz

For more information, please refer to datasheet

Documents

TUSB8020BIPHPQ1 Datasheet

More Information

The TUSB8020B-Q1 is a two-port USB 3.0 compliant hub. It provides simultaneous SuperSpeed USB and high-speed/full-speed connections on the upstream port and provides SuperSpeed USB, high-speed, full-speed, or low-speed connections on the downstream ports. When the upstream port is connected to an electrical environment that only supports high-speed or full-speed/low-speed connections, SuperSpeed USB connectivity is disabled on the downstream ports. When the upstream port is connected to an electrical environment that only supports full-speed/low-speed connections, SuperSpeed USB and high-speed connectivity are disabled on the downstream ports.
