Texas Instruments
TUSB8041IRGCR
TUSB8041IRGCR
Couldn't load pickup availability
TUSB8041IRGCR Texas Instruments - Yeehing Electronics
4-port 5-Gbps SuperSpeed USB 3.0 hub
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 6.843 |
| 100 — 249 | 5.579 |
| 250 — 999 | 4.385 |
| 1,000 + | 2.60 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | USB Interface IC |
| RoHS | Y |
| Mounting Style | SMD/SMT |

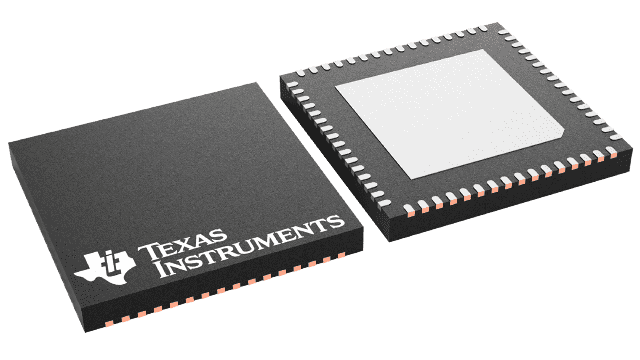

| Package / Case | VQFN-64 |
| Series | TUSB8041 |
| Product | USB Hubs |
| Type | Hub Controller |
| Standard | USB 3.0 |
| Speed | Super Speed |
| Data Rate | 5 Gb/s |
| Operating Supply Current | 28 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Brand | Texas Instruments |
| Interface Type | I2C |
| Number of Ports | 4 Port |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 1.1 V, 3.3 V |
| Product Type | USB Interface IC |
| Factory Pack Quantity | 2000 |
| Subcategory | Interface ICs |
| Unit Weight | 0.008021 oz |
For more information, please refer to datasheet
Documents
| TUSB8041IRGCR Datasheet |
More Information
The TUSB8041 is a four-port USB 3.0 hub. It provides simultaneous SuperSpeed USB and high-speed/full-speed connections on the upstream port and provides SuperSpeed USB, high-speed, full-speed, or low-speed connections on the downstream ports. When the upstream port is connected to an electrical environment that only supports high-speed or full-speed/low-speed connections, SuperSpeed USB connectivity is disabled on the downstream ports. When the upstream port is connected to an electrical environment that only supports full-speed/low-speed connections, SuperSpeed USB and high-speed connectivity are disabled on the downstream ports.
