TUSB9261IPAPQ1 Texas Instruments - Yeehing Electronics
Automotive 2nd Generation SuperSpeed USB 3.0 to Serial ATA Bridge
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 10.169 |
100 — 249 | 8.883 |
250 — 999 | 6.849 |
1,000 + | 4.29 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | USB Interface IC |
RoHS | Y |
Mounting Style | SMD/SMT |

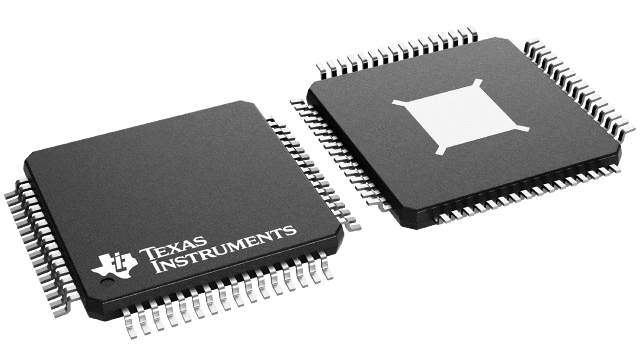

Package / Case | HTQFP-64 |
Series | TUSB9261-Q1 |
Product | USB Controllers |
Type | Bridge, USB to SATA |
Standard | USB 3.0 |
Speed | Super Speed |
Data Rate | 5 Gb/s |
Operating Supply Current | 291 mA |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Qualification | AEC-Q100 |
Packaging | Tube |
Brand | Texas Instruments |
Interface Type | ATA, ATAPI, JTAG, SATA, SPI, UART |
Moisture Sensitive | Yes |
Operating Supply Voltage | 3.3 V, 1.1 V |
Product Type | USB Interface IC |
Factory Pack Quantity | 160 |
Subcategory | Interface ICs |
Unit Weight | 0.017506 oz |
For more information, please refer to datasheet
Documents
TUSB9261IPAPQ1 Datasheet |
More Information
The TUSB9261-Q1 is an ARM cortex M3 microcontroller based Universal Serial Bus (USB) 3.0 to Serial ATA (SATA) bridge. It provides the necessary hardware and firmware to implement a USB Attached SCSI Protocol (UASP) compliant mass storage device suitable for bridging SATA compatible hard disk drives (HDD) and solid state disk drives (SSD) to a USB 3.0 bus. The firmware also implements the mass storage class bulk-only transport (BOT) for bridging optical drives and other compatible SATA devices to the USB bus. In addition to UASP and BOT support,a USB human interface device (HID) interfaces is supported for control of the general purpose input/ouput (GPIO). The SATA interface supports gen1 (1.5-Gbps) and gen2 (3.0-Gbps) for cable lengths up to 2 meters.
