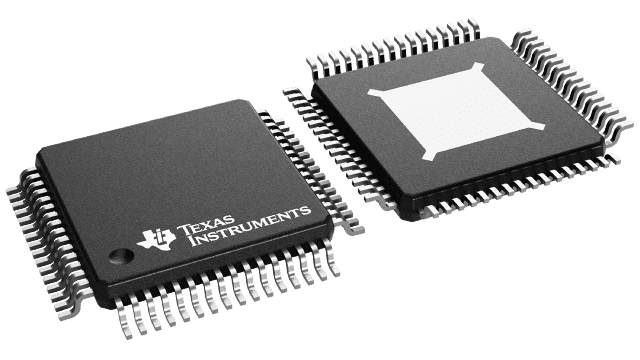

TUSB9261PVP Texas Instruments - Yeehing Electronics
USB 3.0 5 Gbps to SATA bridge
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.675 |
| 100 — 249 | 3.812 |
| 250 — 999 | 2.996 |
| 1,000 + | 1.51 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | USB Interface IC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | HTQFP-64 |
| Series | TUSB9261 |
| Product | USB Controllers |
| Type | Bridge, USB to SATA |
| Standard | USB 3.0 |
| Speed | Super Speed |
| Data Rate | 5 Gb/s |
| Operating Supply Current | 291 mA |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Tray |
| Brand | Texas Instruments |
| Interface Type | ATA, ATAPI, JTAG, SATA, SPI, UART |
| Development Kit | TUSB9261DEMO |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 3.3 V, 1.1 V |
| Product Type | USB Interface IC |
| Factory Pack Quantity | 250 |
| Subcategory | Interface ICs |
| Unit Weight | 0.017506 oz |
For more information, please refer to datasheet
Documents
| TUSB9261PVP Datasheet |
More Information
The TUSB9261 is an ARM® Cortex® M3 microcontroller based USB 3.0 to serial ATA bridge. It provides the necessary hardware and firmware to implement a USB attached SCSI protocol (UASP)-compliant mass storage device suitable for bridging hard disk drives (HDD), solid state disk drives (SSD), optical drives, and other compatible SATA 1.5-Gbps or SATA 3.0-Gbps devices to a USB 3.0 bus. In addition to UASP support, the firmware implements the mass storage class BOT and USB HID interfaces.
