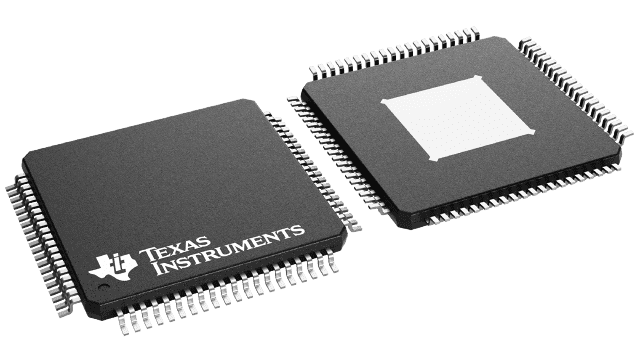

TVP5147M1PFPR


YeeHing #: Y007-TVP5147M1PFPR
Inventory: 6400

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

TVP5147M1PFPR Texas Instruments - Yeehing Electronics

10-bit High Quality Single-Chip Digital Video Decoder That Digitizes And Decodes NTSC/PAL/SECAM

Pricing (USD)

Quantity Unit Price
1 — 99 6.425
100 — 249 5.238
250 — 999 4.117
1,000 + 2.44

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Video ICs
RoHS Y
Type Video Decoder
Minimum Operating Temperature 0 C
Maximum Operating Temperature + 70 C
Mounting Style SMD/SMT
Package / Case HTQFP-80
Packaging Reel
Length 12 mm
Operating Temperature Range 0 C to + 70 C
Series TVP5147M1
Width 12 mm
Brand Texas Instruments
Moisture Sensitive Yes
Product Type Video ICs
Factory Pack Quantity 1000
Subcategory Video ICs
Unit Weight 0.012984 oz

For more information, please refer to datasheet

Documents

TVP5147M1PFPR Datasheet

More Information

The TVP5147M1 device is a high-quality, single-chip digital video decoder that digitizes and decodes all popular baseband analog video formats into digital component video. The TVP5147M1 decoder supports the analog-to-digital (A/D) conversion of component YPbPr signals, as well as the A/D conversion and decoding of NTSC, PAL, and SECAM composite and S-video into component YCbCr. This decoder includes two 11-bit 30-MSPS A/D converters (ADCs). Preceding each ADC in the device, the corresponding analog channel contains an analog circuit that clamps the input to a reference voltage and applies a programmable gain and offset. A total of ten video input terminals can be configured to a combination of YPbPr, CVBS, or S-video video inputs.
