Texas Instruments

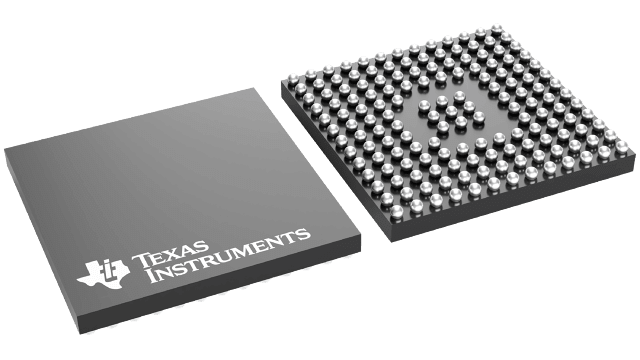

TWL6032A1B4YFFT
TWL6032A1B4YFFT
Couldn't load pickup availability
TWL6032A1B4YFFT Texas Instruments - Yeehing Electronics
Fully Integrated Power Management IC (PMIC) with Power Path and Battery Charger
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 10.339 |
| 100 — 249 | 8.429 |
| 250 — 999 | 6.625 |
| 1,000 + | 3.93 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Power Management Specialized - PMIC |
| RoHS | Y |
| Output Current | 1.6 A |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-155 |
| Packaging | Reel |
| Application | OMAP4430/60/70 |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | TWL6032 |
| Brand | Texas Instruments |
| Operating Supply Current | 20 uA |
| Operating Supply Voltage | 2.5 V to 4.8 V |
| Product Type | Power Management Specialized - PMIC |
| Factory Pack Quantity | 250 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| TWL6032A1B4YFFT Datasheet |
More Information
The TWL6032 device is an integrated power-management integrated circuit (PMIC) for applications powered by a rechargeable battery. The device provides five configurable step-down converters with a current capability of up to 5.0 A for memory, processor core, I/O, auxiliary, preregulation for LDOs, and so forth. The device also contains nine LDO regulators for external use that can be supplied from a battery or a preregulated supply. The power-up and power-down controller is configurable and can support any power-up or power-down sequence (programmed in OTP memory). The RTC provides three 32-kHz clock outputs: seconds, minutes, hours, day, month, and year information; as well as alarm wakeup and timer. The TWL6032 device supports 32-kHz clock generation based on a crystal oscillator.
