Texas Instruments
TWL6041BYFFR
TWL6041BYFFR
Regular price
$1.17 USD
Regular price
Sale price
$1.17 USD
Unit price
per
Couldn't load pickup availability

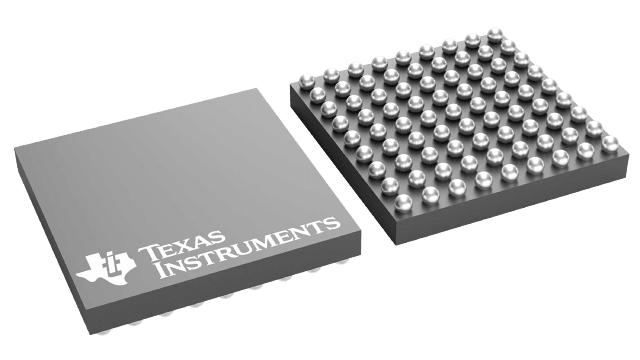

TWL6041BYFFR Texas Instruments - Yeehing Electronics
8-Channel High Quality Low-Power Audio Codec For Portable Applications
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.373 |
| 100 — 249 | 2.956 |
| 250 — 999 | 2.072 |
| 1,000 + | 1.17 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Interface - CODECs |
| RoHS | Y |
| Type | Audio CODEC, Low Power |
| Conversion Rate | 48 kHz |
| Interface Type | Serial (I2C) |
| Number of ADCs | 2 ADC |
| Number of DACs | 4 DAC |
| Operating Supply Voltage | 2.3 V to 5.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-81 |
| Packaging | Reel |
| Features | Comm Control |
| Product | Audio CODECs |
| Series | TWL6041 |
| Brand | Texas Instruments |
| Number of ADC Inputs | 2 Input |
| Number of DAC Outputs | 4 Output |
| Product Type | CODECs |
| SNR - Signal to Noise Ratio | 96 dB ADC |
| Factory Pack Quantity | 3000 |
| Subcategory | Interface ICs |
For more information, please refer to datasheet
Documents
| TWL6041BYFFR Datasheet |
More Information
The TWL6041 is an audio codec with a high level of integration providing analog audio codec functions for portable applications, as shown in . The device contains multiple audio analog inputs and outputs, as well as microphone biases and accessory detection. The device is connected to the OMAP 4 host processor through a proprietary PDM interface for audio data communication enabling partitioning with optimized power consumption and performance. Multichannel audio data is multiplexed to a single wire for downlink (PDML) and uplink (PDMUL).
