Texas Instruments
TX517IZCQ
TX517IZCQ
Regular price
$12.20 USD
Regular price
Sale price
$12.20 USD
Unit price
per
Couldn't load pickup availability
TX517IZCQ Texas Instruments - Yeehing Electronics
Dual-channel high-voltage multilevel fully-integrated ultrasound transmitter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 26.659 |
| 100 — 249 | 23.697 |
| 250 — 999 | 19.48 |
| 1,000 + | 12.20 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Translation - Voltage Levels |
| RoHS | Y |
| Propagation Delay Time | 30 ns |
| Supply Voltage - Max | 5.25 V |
| Supply Voltage - Min | 4.75 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |

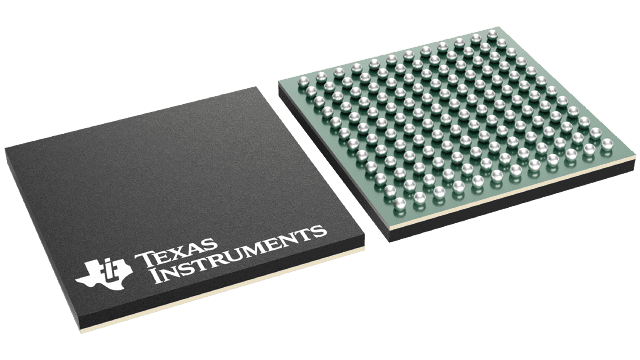

| Package / Case | nFBGA-144 |
| Packaging | Tray |
| Operating Temperature Range | 0 C to + 85 C |
| Series | TX517 |
| Brand | Texas Instruments |
| Development Kit | TX517EVM |
| Moisture Sensitive | Yes |
| Product Type | Translation - Voltage Levels |
| Factory Pack Quantity | 160 |
| Subcategory | Logic ICs |
For more information, please refer to datasheet
Documents
| TX517IZCQ Datasheet |
More Information
The TX517 is a fully integrated, dual channel, high voltage Transmitter. It is specifically designed for demanding medical Ultrasound applications that require a Multi-level high-voltage pulse pattern. The output stages are designed to deliver typically ±2.5A peak output currents, with 200Vpp swings.
