Texas Instruments
TX7316ZCX
TX7316ZCX
Regular price
$27.10 USD
Regular price
Sale price
$27.10 USD
Unit price
per
Couldn't load pickup availability

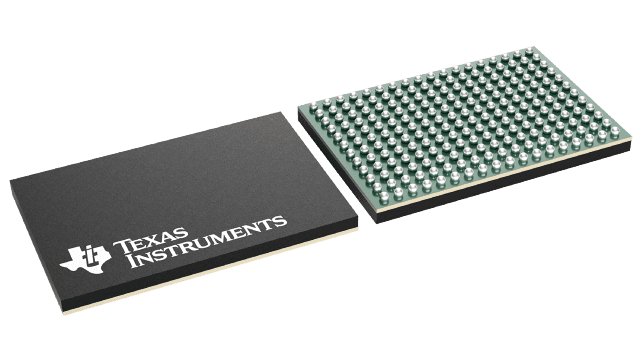

TX7316ZCX Texas Instruments - Yeehing Electronics
16-channel 3-level or 8-channel 5-level transmitter with integrated transmit beamformer
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 59.242 |
| 100 — 249 | 52.659 |
| 250 — 999 | 43.289 |
| 1,000 + | 27.10 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | RF Transmitter |
| RoHS | Y |
| Type | Ultrasound Imaging System |
| Operating Frequency | 200 MHz |
| Maximum Operating Temperature | + 70 C |
| Package / Case | NFBGA-216 |
| Mounting Style | SMD/SMT |
| Packaging | Tray |
| Series | TX7316 |
| Brand | Texas Instruments |
| Minimum Operating Temperature | 0 C |
| Moisture Sensitive | Yes |
| Product Type | RF Transmitter |
| Factory Pack Quantity | 136 |
| Subcategory | Wireless & RF Integrated Circuits |
For more information, please refer to datasheet
Documents
| TX7316ZCX Datasheet |
More Information
The TX7316 is a highly integrated, high-performance transmitter solution for ultrasound imaging system. The device has total 16 pulser circuits (PULS), 16 transmit/receive (T/R) switches, and supports both on-chip and off-chip beamformer (TxBF). The device also integrates on-chip floating power supplies that reduce the number of required high voltage power supplies.
