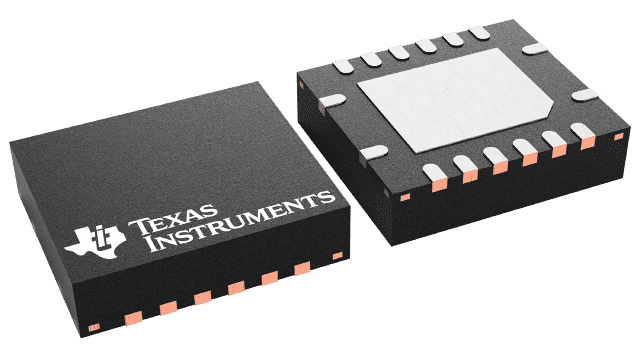

TXB0106RGYR Texas Instruments - Yeehing Electronics
6-Bit Bidirectional Voltage-Level Translator with Auto Direction Sensing and +/-15-kV ESD Protect
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.107 |
| 100 — 249 | 0.851 |
| 250 — 999 | 0.627 |
| 1,000 + | 0.31 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Translation - Voltage Levels |
| RoHS | Y |
| Propagation Delay Time | 9.5 ns |
| Supply Voltage - Max | 3.6 V, 5.5 V |
| Supply Voltage - Min | 1.2 V, 1.65 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-16 |
| Packaging | Reel |
| Data Rate | 100 Mb/s |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | TXB0106 |
| Brand | Texas Instruments |
| Logic Family | SLL C10 (33B10) |
| Logic Type | Voltage Level Translator |
| High Level Output Current | 50 mA |
| Low Level Output Current | 50 mA |
| Moisture Sensitive | Yes |
| Product Type | Translation - Voltage Levels |
| Factory Pack Quantity | 3000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.001312 oz |
For more information, please refer to datasheet
Documents
| TXB0106RGYR Datasheet |
More Information
This 6-bit noninverting translator uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.2 V to 3.6 V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.65 V to 5.5 V. This allows for universal low-voltage bidirectional translation between any of the 1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V, and 5 V voltage nodes. VCCA should not exceed VCCB.
