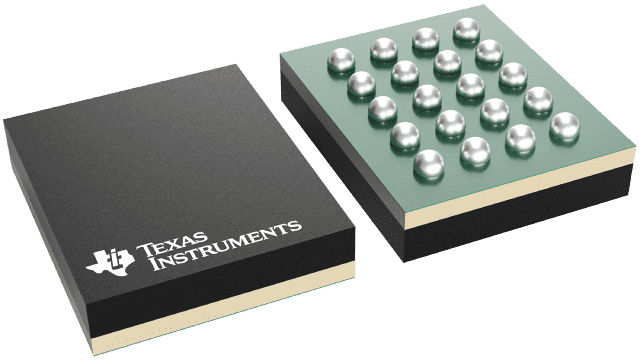

TXB0108NMER Texas Instruments - Yeehing Electronics
8-Bit Bidirectional Voltage-Level Shifter with Auto Direction Sensing and +/-15-kV ESD Protect
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.223 |
| 100 — 249 | 1.01 |
| 250 — 999 | 0.726 |
| 1,000 + | 0.44 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| TXB0108NMER Datasheet |
More Information
This 8-bit noninverting translator uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.2 V to 3.6 V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.65 V to 5.5 V. This allows for universal low-voltage bidirectional translation between any of the 1.2-V, 1.5-V, 1.8-V, 2.5-V, 3.3-V, and 5-V voltage nodes. VCCA should not exceed VCCB.
