Texas Instruments
TXBN0304RSVR
TXBN0304RSVR
Regular price
$0.19 USD
Regular price
Sale price
$0.19 USD
Unit price
per
Couldn't load pickup availability

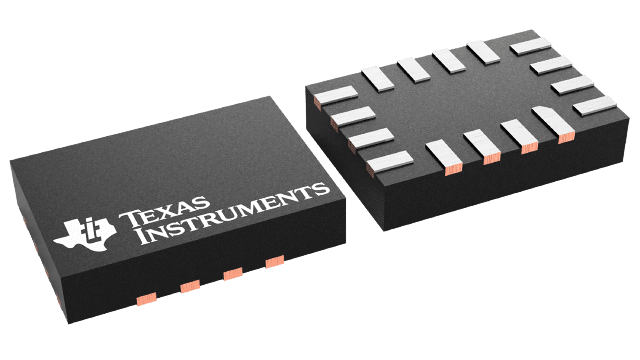

TXBN0304RSVR Texas Instruments - Yeehing Electronics
4-bit Bidirectional Auto-direction Sensing Translator with Fully Symmetric 0.9V to 3.6V Range
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.803 |
| 100 — 249 | 0.618 |
| 250 — 999 | 0.455 |
| 1,000 + | 0.19 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Translation - Voltage Levels |
| RoHS | Y |
| Type | Bidirectional Voltage Level Translators |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 0.9 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | UQFN-16 |
| Packaging | Reel |
| Data Rate | 140 Mb/s |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | TXB0304 |
| Brand | Texas Instruments |
| Development Kit | TXB0304EVM |
| High Level Output Current | 50 mA |
| Low Level Output Current | 50 mA |
| Product Type | Translation - Voltage Levels |
| Factory Pack Quantity | 3000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.001443 oz |
For more information, please refer to datasheet
Documents
| TXBN0304RSVR Datasheet |
More Information
This 4-bit non-inverting translator uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 0.9 V to 3.6 V. The B port is designed to track VCCB. VCCB accepts any supply voltage from
