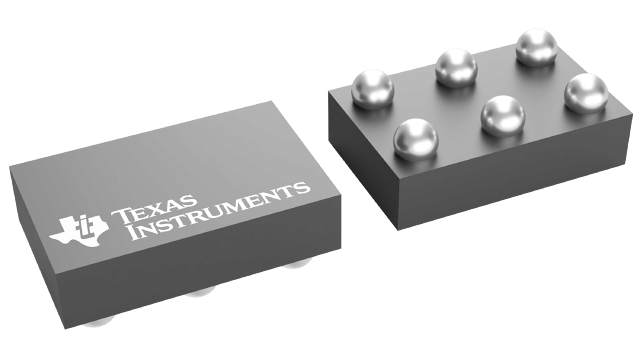

TXS0101YZPR Texas Instruments - Yeehing Electronics
1-Bit Bidirectional Voltage-Level Shifter for Open-Drain and Push-Pull Application
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.491 |
100 — 249 | 0.333 |
250 — 999 | 0.257 |
1,000 + | 0.24 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Translation - Voltage Levels |
RoHS | Y |
Propagation Delay Time | 260 ns |
Supply Voltage - Max | 3.6 V, 5.5 V |
Supply Voltage - Min | 1.65 V, 2.3 V |
Minimum Operating Temperature | - 55 C |
Maximum Operating Temperature | + 125 C |
Mounting Style | SMD/SMT |
Package / Case | DSBGA-6 |
Packaging | Reel |
Features | One-Shot Edge Accelerators, Bidirectional |
Operating Temperature Range | - 55 C to + 125 C |
Output Type | 3-State, Open Drain |
Series | TXS0101 |
Brand | Texas Instruments |
Logic Type | True |
Product Type | Translation - Voltage Levels |
Factory Pack Quantity | 3000 |
Subcategory | Logic ICs |
Unit Weight | 0.000060 oz |
For more information, please refer to datasheet
Documents
TXS0101YZPR Datasheet |
More Information
This one-bit non-inverting translator uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.65 V to 3.6 V. The B port is designed to track VCCB. VCCA must be less than or equal to VCCB. VCCB accepts any supply voltage from 2.3 V to 5.5 V. This allows for low voltage bidirectional translation between any of the 1.8 V, 2.5 V, 3.3 V, and 5 V voltage nodes.
