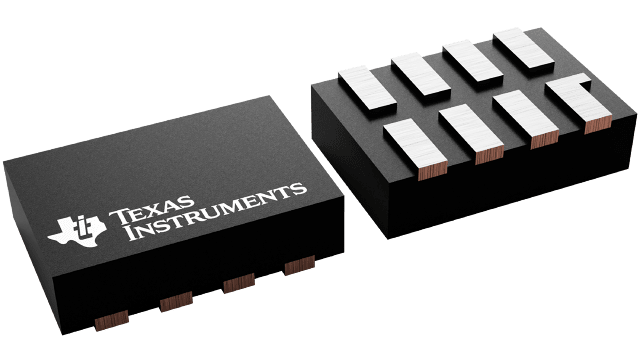

TXS0102DQMR Texas Instruments - Yeehing Electronics
2-Bit Bidirectional Voltage-Level Shifter for Open-Drain and Push-Pull Application
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.62 |
100 — 249 | 0.477 |
250 — 999 | 0.351 |
1,000 + | 0.18 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
TXS0102DQMR Datasheet |
More Information
This two-bit non-inverting translator is a bidirectional voltage-level translator and can be used to establish digital switching compatibility between mixed-voltage systems. It uses two separate configurable power-supply rails, with the A ports supporting operating voltages from 1.65 V to 3.6 V while it tracks the VCCA supply, and the B ports supporting operating voltages from 2.3 V to 5.5 V while it tracks the VCCB supply. This allows the support of both lower and higher logic signal levels while providing bidirectional translation capabilities between any of the 1.8-V, 2.5-V, 3.3-V, and 5-V voltage nodes.
