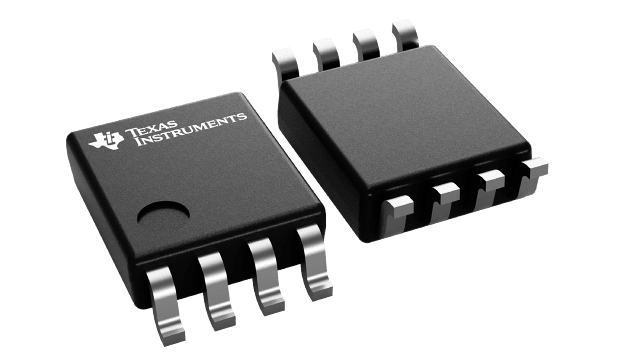

TXS0102QDCURQ1 Texas Instruments - Yeehing Electronics
Automotive 2-bit bidirectional voltage-level translator for open-drain and push-pull application
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.697 |
100 — 249 | 0.536 |
250 — 999 | 0.395 |
1,000 + | 0.20 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Translation - Voltage Levels |
RoHS | Y |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Mounting Style | SMD/SMT |
Package / Case | VSSOP-8 |
Qualification | AEC-Q100 |
Packaging | Reel |
Features | One-Shot Edge Accelerators, Bidirectional |
Operating Temperature Range | - 40 C to + 125 C |
Series | TXS0102-Q1 |
Brand | Texas Instruments |
Logic Type | True |
Moisture Sensitive | Yes |
Product Type | Translation - Voltage Levels |
Factory Pack Quantity | 3000 |
Subcategory | Logic ICs |
Unit Weight | 0.000317 oz |
For more information, please refer to datasheet
Documents
TXS0102QDCURQ1 Datasheet |
More Information
The TXS0102-Q1 device connects an incompatible logic communication from chip-to-chip due to voltage mismatch. This auto-direction translator can be conveniently used to bridge the gap without the need of direction control from the host. Each channel can be mixed and matched with different output types (open-drain or push-pull) and mixed data flows (transmit or receive) without intervention from the host. This 4-bit noninverting translator uses two separate configurable power-supply rails. The A and B ports are designed to track VCCA and VCCB respectively. The VCCB pin accepts any supply voltage from 2.3 V to 5.5 V while the VCCA pin accepts any supply voltage from 1.65 V to 3.6 V such that VCCA is less than or equal to VCCB. This tracking allows for low-voltage bidirectional translation between any of the 1.8-V, 2.5-V, 3.3-V, and 5-V voltage nodes.
