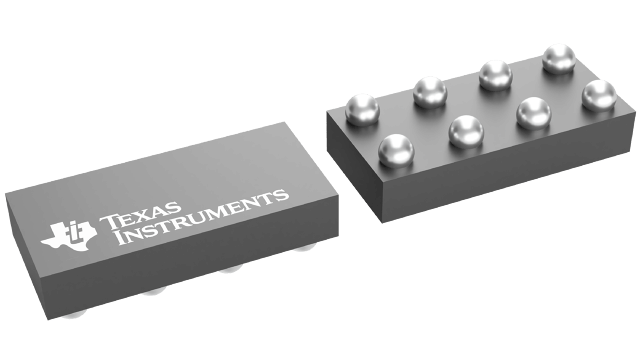

TXS0102YZPR Texas Instruments - Yeehing Electronics
2-Bit Bidirectional Voltage-Level Shifter for Open-Drain and Push-Pull Application
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.637 |
| 100 — 249 | 0.49 |
| 250 — 999 | 0.361 |
| 1,000 + | 0.18 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Translation - Voltage Levels |
| RoHS | Y |
| Propagation Delay Time | 260 ns |
| Supply Voltage - Max | 3.6 V, 5.5 V |
| Supply Voltage - Min | 1.65 V, 2.3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | DSBGA-8 |
| Packaging | Reel |
| Features | One-Shot Edge Accelerators, Bidirectional |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | TXS0102 |
| Brand | Texas Instruments |
| Logic Type | True |
| Product Type | Translation - Voltage Levels |
| Factory Pack Quantity | 3000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.001340 oz |
For more information, please refer to datasheet
Documents
| TXS0102YZPR Datasheet |
More Information
This two-bit non-inverting translator is a bidirectional voltage-level translator and can be used to establish digital switching compatibility between mixed-voltage systems. It uses two separate configurable power-supply rails, with the A ports supporting operating voltages from 1.65 V to 3.6 V while it tracks the VCCA supply, and the B ports supporting operating voltages from 2.3 V to 5.5 V while it tracks the VCCB supply. This allows the support of both lower and higher logic signal levels while providing bidirectional translation capabilities between any of the 1.8-V, 2.5-V, 3.3-V, and 5-V voltage nodes.
