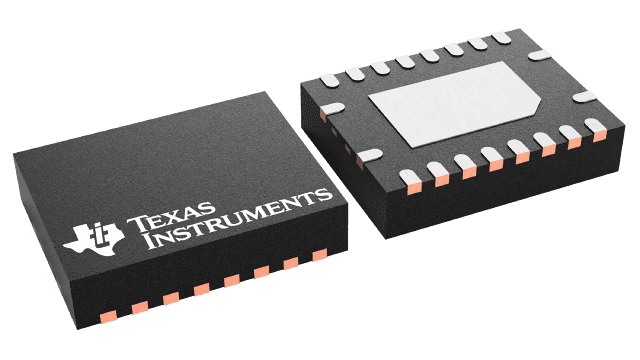

TXS0108ERGYR Texas Instruments - Yeehing Electronics
8-bit bidirectional voltage-level shifter for open-drain and push-pull application
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.89 |
100 — 249 | 0.71 |
250 — 999 | 0.53 |
1,000 + | 0.41 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Translation - Voltage Levels |
RoHS | Y |
Propagation Delay Time | 312 ns |
Supply Voltage - Max | 3.6 V, 5.5 V |
Supply Voltage - Min | 1.2 V, 1.65 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Mounting Style | SMD/SMT |
Package / Case | VQFN-20 |
Packaging | Reel |
Data Rate | 60 Mb/s |
Operating Temperature Range | - 40 C to + 85 C |
Series | TXS0108E |
Brand | Texas Instruments |
Logic Type | Voltage Level Translator |
High Level Output Current | 50 mA |
Low Level Output Current | 50 mA |
Moisture Sensitive | Yes |
Product Type | Translation - Voltage Levels |
Factory Pack Quantity | 3000 |
Subcategory | Logic ICs |
Unit Weight | 0.001517 oz |
For more information, please refer to datasheet
Documents
TXS0108ERGYR Datasheet |
More Information
This device is an 8-bit non-inverting level translator that uses two separate configurable power-supply rails. The A port tracks the VCCA pin supply voltage. The VCCA pin accepts any supply voltage between 1.4 V and 3.6 V. The B port tracks the VCCB pin supply voltage. The VCCB pin accepts any supply voltage between 1.65 V and 5.5 V. Two input supply pins allows for low Voltage bidirectional translation between any of the 1.5 V, 1.8 V, 2.5 V, 3.3 V, and 5 V voltage nodes.
