Texas Instruments
TXS0206YFPR
TXS0206YFPR
Regular price
$0.27 USD
Regular price
Sale price
$0.27 USD
Unit price
per
Couldn't load pickup availability
TXS0206YFPR Texas Instruments - Yeehing Electronics
MMC, SD Card, MemoryStick Voltage-Translation Transceiver With ESD Protection and EMI Filtering
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 1.084 |
| 100 — 249 | 0.895 |
| 250 — 999 | 0.643 |
| 1,000 + | 0.27 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Translation - Voltage Levels |
| RoHS | Y |
| Propagation Delay Time | 3.2 ns |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 1.1 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |

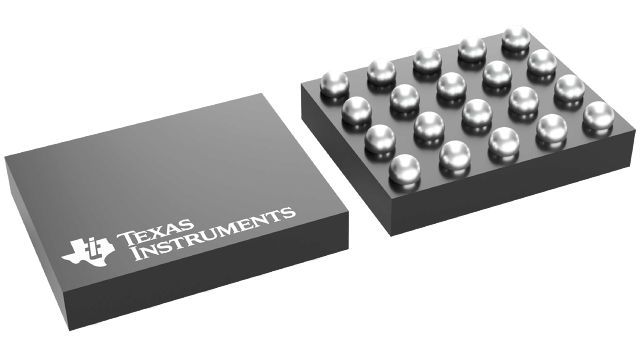

| Package / Case | DSBGA-20 |
| Packaging | Reel |
| Features | SD/SDIO/MMC Card |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | TXS0206 |
| Brand | Texas Instruments |
| Logic Family | Compact Flash, SD, MMC, I2C |
| Logic Type | Translation Transceiver |
| High Level Output Current | - 8 mA |
| Low Level Output Current | 8 mA |
| Operating Supply Current | 11 uA |
| Product Type | Translation - Voltage Levels |
| Factory Pack Quantity | 3000 |
| Subcategory | Logic ICs |
| Unit Weight | 0.000123 oz |
For more information, please refer to datasheet
Documents
| TXS0206YFPR Datasheet |
More Information
The TXS0206 is a level shifter for interfacing microprocessors with MultiMediaCards (MMCs), secure digital (SD) cards, and Memory Stick™ cards. It includes a high-speed level translator along with ESD protection and EMI filtering circuitry.
