Texas Instruments
TXS02612RTWR
TXS02612RTWR
Regular price
$0.41 USD
Regular price
Sale price
$0.41 USD
Unit price
per
Couldn't load pickup availability

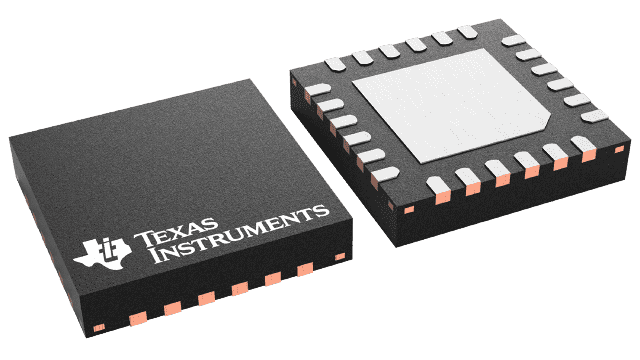

TXS02612RTWR Texas Instruments - Yeehing Electronics
SDIO Port Expander With Voltage-Level Translation
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.98 |
| 100 — 249 | 0.74 |
| 250 — 999 | 0.56 |
| 1,000 + | 0.41 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Interface - I/O Expanders |
| RoHS | Y |
| Operating Supply Voltage | 1.1 V to 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-24 |
| Packaging | Reel |
| Features | SD/SDIO/MMC Card |
| Series | TXS02612 |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Current | 36 uA |
| Product Type | I/O Expanders |
| Propagation Delay Time | 4.4 ns |
| Factory Pack Quantity | 3000 |
| Subcategory | Interface ICs |
| Unit Weight | 0.001277 oz |
For more information, please refer to datasheet
Documents
| TXS02612RTWR Datasheet |
More Information
The TXS02612 is designed to interface the cell phone baseband with external SDIO peripherals. The device includes a 6-channel SPDT switch with voltage-level translation capability. This allows a single SDIO port to be interfaced with two SDIO peripherals. The TXS02612 has three separate supply rails that operate over the full range of 1.1 V to 3.6 V. This allows the baseband and SDIO peripherals to operate at different supply voltages if required.
