Description

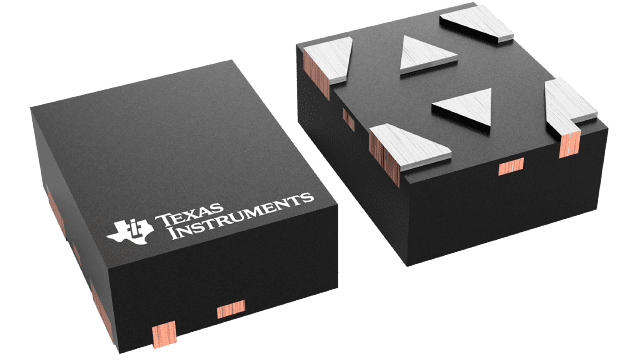

TXU0101DTQR Texas Instruments - Yeehing Electronics
Single channel fixed-direction level shifter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.514 |
| 100 — 249 | 0.349 |
| 250 — 999 | 0.269 |
| 1,000 + | 0.13 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| TXU0101DTQR Datasheet |
More Information
TXU0101 is a 1-bit, dual-supply noninverting fixed direction voltage level translation device. A pin is referenced to VCCA logic level, OE pin can be referenced to either VCCA or VCCB logic levels, and B pin is referenced to VCCB logic level. The A port is able to accept input voltages ranging from 1.1 V to 5.5 V, while the B port can also accept input voltages from 1.1 V to 5.5 V. Fixed direction data transmission can occur from A to B when OE is set to high in reference to either supply. When OE is set to low, all output pins are in the high-impedance state. See Device Functional Modes for a summary of the operation of the control logic.
