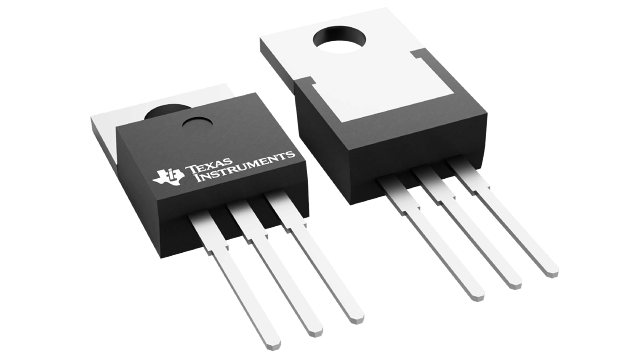

UA7805CKCS Texas Instruments - Yeehing Electronics

1.5-A, 38-V, linear voltage regulator

Pricing (USD)

Quantity	Unit Price
1 — 99	0.795
100 — 249	0.612
250 — 999	0.45
1,000 +	0.19

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Linear Voltage Regulators
RoHS	Y
Mounting Style	Through Hole
Package / Case	TO-220-3
Number of Outputs	1 Output
Polarity	Positive
Output Voltage	5 V
Output Current	1.5 A
Output Type	Fixed
Input Voltage MAX	25 V
Input Voltage MIN	7 V
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 125 C
Load Regulation	100 mV
Line Regulation	100 mV
Series	UA7805
Packaging	Tube
Height	8.7 mm
Length	10.16 mm
Operating Temperature Range	0 C to + 125 C
Width	4.58 mm
Brand	Texas Instruments
PSRR / Ripple Rejection - Typ	78 dB
Product Type	Linear Voltage Regulators
Factory Pack Quantity	50
Subcategory	PMIC - Power Management ICs
Unit Weight	0.067197 oz

For more information, please refer to datasheet

Documents

UA7805CKCS Datasheet

More Information

This series of fixed-voltage integrated-circuit voltage regulators is designed for a wide range of applications. These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. Each of these regulators can deliver up to 1.5 A of output current. The internal current-limiting and thermal-shutdown features of these regulators essentially make them immune to overload. In addition to use as fixed-voltage regulators, these devices can be used with external components to obtain adjustable output voltages and currents, and also can be used as the power-pass element in precision regulators.
