Texas Instruments

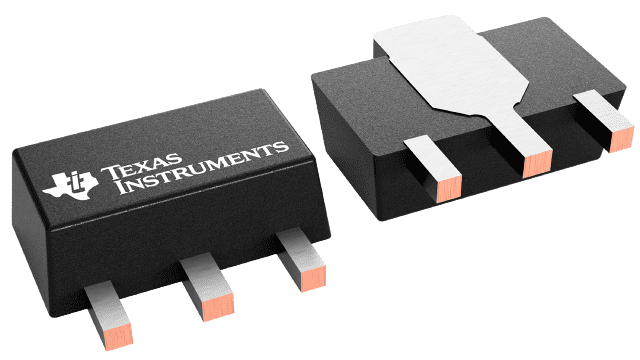

UA78L05ACPKE6
UA78L05ACPKE6
Regular price
$0.06 USD
Regular price
Sale price
$0.06 USD
Unit price
per
Couldn't load pickup availability
UA78L05ACPKE6 Texas Instruments - Yeehing Electronics
100-mA, 30-V, linear voltage regulator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.255 |
| 100 — 249 | 0.174 |
| 250 — 999 | 0.134 |
| 1,000 + | 0.06 |
The above prices are for reference only.
Specifications
| Manufacturer | ROHM Semiconductor |
| Product Category | Linear Voltage Regulators |
| RoHS | Y |
| Mounting Style | Through Hole |
| Package / Case | TO-220-3 |
| Number of Outputs | 1 Output |
| Polarity | Positive |
| Output Voltage | 12 V |
| Output Current | 500 mA |
| Output Type | Fixed |
| Input Voltage MAX | 27 V |
| Input Voltage MIN | 14.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Load Regulation | 20 mV |
| Line Regulation | 5 mV |
| Quiescent Current | - |
| Series | BA78M |
| Packaging | Reel |
| Product | Linear Voltage Regulators |
| Type | Voltage Regulator |
| Brand | ROHM Semiconductor |
| PSRR / Ripple Rejection - Typ | 63 dB |
| Development Kit | - |
| Pd - Power Dissipation | 22 W |
| Product Type | Linear Voltage Regulators |
| Reference Voltage | - |
| Factory Pack Quantity | 500 |
| Subcategory | PMIC - Power Management ICs |
| Part # Aliases | BA78M12CP |
| Unit Weight | 0.063493 oz |
For more information, please refer to datasheet
Documents
| UA78L05ACPKE6 Datasheet |
More Information
The UA78L00 series of fixed-voltage linear regulators is designed for a wide range of applications. These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation as well as for voltage regulation in major appliances. In addition, they can be used with power-pass elements to make high-current voltage regulators. One of these regulators can deliver up to 100 mA of output current. The internal limiting and thermal-shutdown features of these regulators help to protect the device from overload.
