Texas Instruments

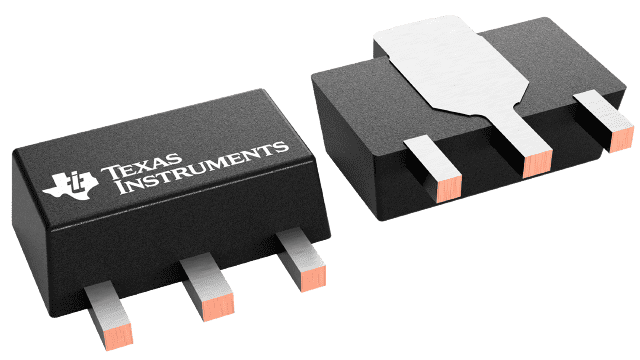

UA78L05AIPK
UA78L05AIPK
Regular price
$0.07 USD
Regular price
Sale price
$0.07 USD
Unit price
per
Couldn't load pickup availability
UA78L05AIPK Texas Instruments - Yeehing Electronics
100-mA, 30-V, linear voltage regulator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.267 |
| 100 — 249 | 0.181 |
| 250 — 999 | 0.14 |
| 1,000 + | 0.07 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Linear Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | SOT-89-3 |
| Number of Outputs | 1 Output |
| Polarity | Positive |
| Output Voltage | 5 V |
| Output Current | 100 mA |
| Output Type | Fixed |
| Input Voltage MAX | 20 V |
| Input Voltage MIN | 7 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Load Regulation | 60 mV |
| Line Regulation | 150 mV |
| Series | UA78L05A |
| Packaging | Reel |
| Height | 1.5 mm |
| Length | 4.5 mm |
| Operating Temperature Range | - 40 C to + 125 C |
| Width | 2.5 mm |
| Brand | Texas Instruments |
| PSRR / Ripple Rejection - Typ | 49 dB |
| Moisture Sensitive | Yes |
| Product Type | Linear Voltage Regulators |
| Factory Pack Quantity | 1000 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.004603 oz |
For more information, please refer to datasheet
Documents
| UA78L05AIPK Datasheet |
More Information
The UA78L00 series of fixed-voltage linear regulators is designed for a wide range of applications. These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation as well as for voltage regulation in major appliances. In addition, they can be used with power-pass elements to make high-current voltage regulators. One of these regulators can deliver up to 100 mA of output current. The internal limiting and thermal-shutdown features of these regulators help to protect the device from overload.
