UA78L09ACPK Texas Instruments - Yeehing Electronics

100-mA, 30-V, linear voltage regulator

Pricing (USD)

Quantity	Unit Price
1 — 99	0.635
100 — 249	0.488
250 — 999	0.36
1,000 +	0.18

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Linear Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT

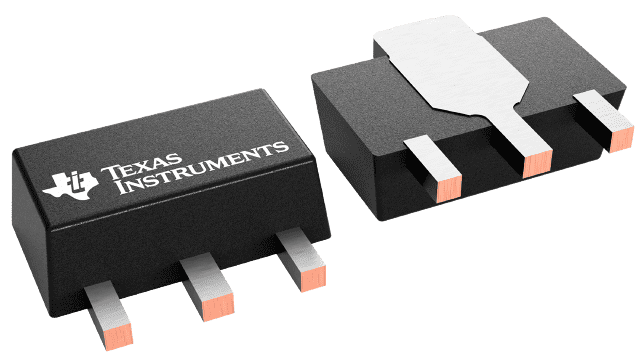

Package / Case	SOT-89-3
Number of Outputs	1 Output
Polarity	Positive
Output Voltage	9 V
Output Current	100 mA
Output Type	Fixed
Input Voltage MAX	23 V
Input Voltage MIN	11.5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Load Regulation	90 mV
Line Regulation	175 mV
Series	UA78L09A
Packaging	Reel
Height	1.5 mm
Length	4.5 mm
Operating Temperature Range	- 40 C to + 125 C
Width	2.5 mm
Brand	Texas Instruments
PSRR / Ripple Rejection - Typ	45 dB
Moisture Sensitive	Yes
Product Type	Linear Voltage Regulators
Factory Pack Quantity	1000
Subcategory	PMIC - Power Management ICs
Unit Weight	0.004603 oz

For more information, please refer to datasheet

Documents

UA78L09ACPK Datasheet

More Information

The UA78L00 series of fixed-voltage linear regulators is designed for a wide range of applications. These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation as well as for voltage regulation in major appliances. In addition, they can be used with power-pass elements to make high-current voltage regulators. One of these regulators can deliver up to 100 mA of output current. The internal limiting and thermal-shutdown features of these regulators help to protect the device from overload.
