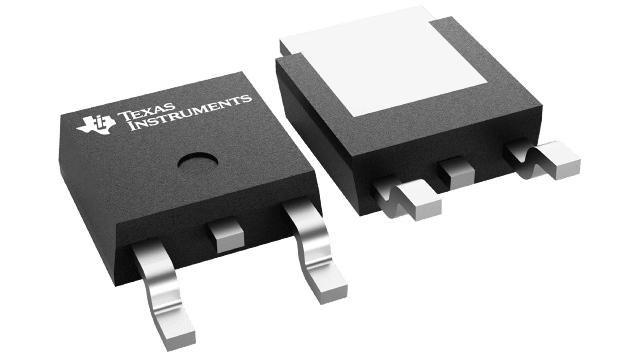

UA78M05CKVURG3 Texas Instruments - Yeehing Electronics

500-mA, 30-V, linear voltage regulator

Pricing (USD)

Quantity	Unit Price
1 — 99	0.462
100 — 249	0.314
250 — 999	0.242
1,000 +	0.11

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Linear Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	TO-252-3
Number of Outputs	1 Output
Polarity	Positive
Output Voltage	5 V
Output Current	500 mA
Output Type	Fixed
Input Voltage MAX	25 V
Input Voltage MIN	7 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Load Regulation	100 mV
Line Regulation	100 mV
Series	UA78M05
Packaging	Reel
Height	2.3 mm
Length	6.6 mm
Operating Temperature Range	- 40 C to + 125 C
Width	6.1 mm
Brand	Texas Instruments
PSRR / Ripple Rejection - Typ	80 dB
Moisture Sensitive	Yes
Product Type	Linear Voltage Regulators
Factory Pack Quantity	2500
Subcategory	PMIC - Power Management ICs
Unit Weight	0.011598 oz

For more information, please refer to datasheet

Documents

UA78M05CKVURG3 Datasheet

More Information

This series of fixed-voltage integrated-circuit voltage regulators is designed for a wide range of applications. The applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. Each of these regulators can deliver up to 500 mA of output current. The internal current-limiting and thermal-shutdown features of these regulators essentially make them immune to overload. In addition to use as fixed-voltage regulators, these devices can be used with external components to obtain adjustable output voltages and currents and also as the power-pass element in precision regulators.
