Description

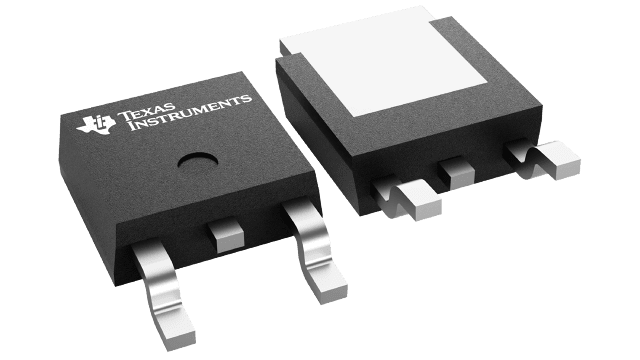

UA78M12CKVURG3 Texas Instruments - Yeehing Electronics
500-mA, 30-V, linear voltage regulator
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 0.755 |
100 — 249 | 0.513 |
250 — 999 | 0.396 |
1,000 + | 0.16 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Linear Voltage Regulators |
RoHS | Y |
Mounting Style | SMD/SMT |
Package / Case | TO-252-3 |
Number of Outputs | 1 Output |
Polarity | Positive |
Output Voltage | 12 V |
Output Current | 500 mA |
Output Type | Fixed |
Input Voltage MAX | 30 V |
Input Voltage MIN | 14.5 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Load Regulation | 240 mV |
Line Regulation | 100 mV |
Series | UA78M12 |
Packaging | Reel |
Height | 2.3 mm |
Length | 6.6 mm |
Operating Temperature Range | - 40 C to + 125 C |
Width | 6.1 mm |
Brand | Texas Instruments |
PSRR / Ripple Rejection - Typ | 80 dB |
Moisture Sensitive | Yes |
Product Type | Linear Voltage Regulators |
Factory Pack Quantity | 2500 |
Subcategory | PMIC - Power Management ICs |
Unit Weight | 0.016579 oz |
For more information, please refer to datasheet
Documents
UA78M12CKVURG3 Datasheet |
More Information
This series of fixed-voltage integrated-circuit voltage regulators is designed for a wide range of applications. The applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. Each of these regulators can deliver up to 500 mA of output current. The internal current-limiting and thermal-shutdown features of these regulators essentially make them immune to overload. In addition to use as fixed-voltage regulators, these devices can be used with external components to obtain adjustable output voltages and currents and also as the power-pass element in precision regulators.
