Texas Instruments

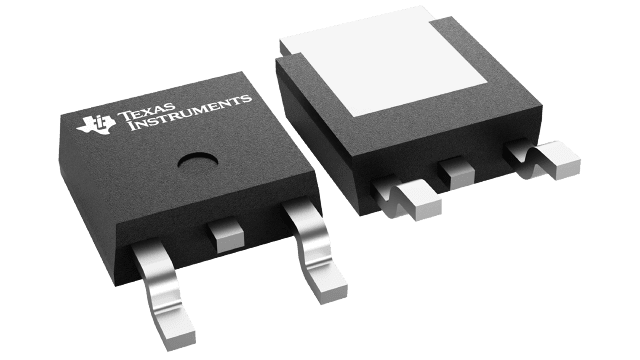

UA78M33CKVURG3
UA78M33CKVURG3
Couldn't load pickup availability
UA78M33CKVURG3 Texas Instruments - Yeehing Electronics
500-mA, 30-V, linear voltage regulator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.445 |
| 100 — 249 | 0.302 |
| 250 — 999 | 0.233 |
| 1,000 + | 0.12 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Linear Voltage Regulators |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | TO-252-3 |
| Number of Outputs | 1 Output |
| Polarity | Positive |
| Output Voltage | 3.3 V |
| Output Current | 500 mA |
| Output Type | Fixed |
| Input Voltage MAX | 25 V |
| Input Voltage MIN | 5.3 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Load Regulation | 100 mV |
| Line Regulation | 100 mV |
| Series | UA78M33 |
| Packaging | Reel |
| Height | 2.3 mm |
| Length | 6.6 mm |
| Operating Temperature Range | - 40 C to + 125 C |
| Width | 6.1 mm |
| Brand | Texas Instruments |
| PSRR / Ripple Rejection - Typ | 80 dB |
| Moisture Sensitive | Yes |
| Product Type | Linear Voltage Regulators |
| Factory Pack Quantity | 2500 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.011598 oz |
For more information, please refer to datasheet
Documents
| UA78M33CKVURG3 Datasheet |
More Information
This series of fixed-voltage integrated-circuit voltage regulators is designed for a wide range of applications. The applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. Each of these regulators can deliver up to 500 mA of output current. The internal current-limiting and thermal-shutdown features of these regulators essentially make them immune to overload. In addition to use as fixed-voltage regulators, these devices can be used with external components to obtain adjustable output voltages and currents and also as the power-pass element in precision regulators.
