Texas Instruments

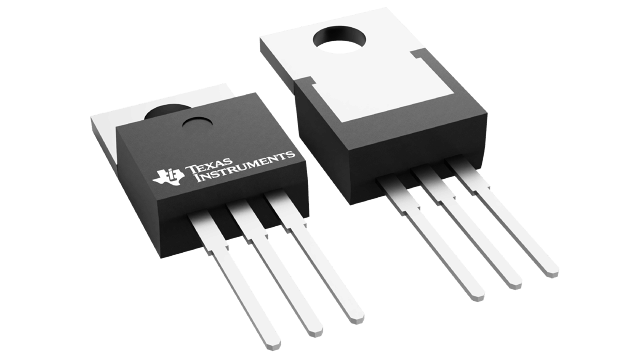

UA7905CKCS
UA7905CKCS
Couldn't load pickup availability
UA7905CKCS Texas Instruments - Yeehing Electronics
1.5-A, negative linear voltage regulator
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 0.59 |
| 100 — 249 | 0.454 |
| 250 — 999 | 0.334 |
| 1,000 + | 0.17 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Linear Voltage Regulators |
| RoHS | Y |
| Mounting Style | Through Hole |
| Package / Case | TO-220-3 |
| Number of Outputs | 1 Output |
| Polarity | Negative |
| Output Voltage | - 5 V |
| Output Current | 1.5 A |
| Output Type | Fixed |
| Input Voltage MAX | - 25 V |
| Input Voltage MIN | - 7 V |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 125 C |
| Load Regulation | 100 mV |
| Line Regulation | 50 mV |
| Series | UA7905 |
| Packaging | Tube |
| Height | 8.7 mm |
| Length | 10.16 mm |
| Operating Temperature Range | 0 C to + 125 C |
| Width | 4.58 mm |
| Brand | Texas Instruments |
| PSRR / Ripple Rejection - Typ | 60 dB |
| Product Type | Linear Voltage Regulators |
| Factory Pack Quantity | 50 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.067197 oz |
For more information, please refer to datasheet
Documents
| UA7905CKCS Datasheet |
More Information
This series of fixed-negative-voltage integrated-circuit voltage regulators is designed to complement Series µA7900 in a wide range of applications. These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. Each of these regulators can deliver up to 1.5 A of output current. The internal current limiting and thermal shutdown features of these regulators essentially make them immune to overload. In addition to use as fixed-voltage regulators, these devices can be used with external components to obtain adjustable output voltages and currents and also as the power-pass element in precision regulators.
