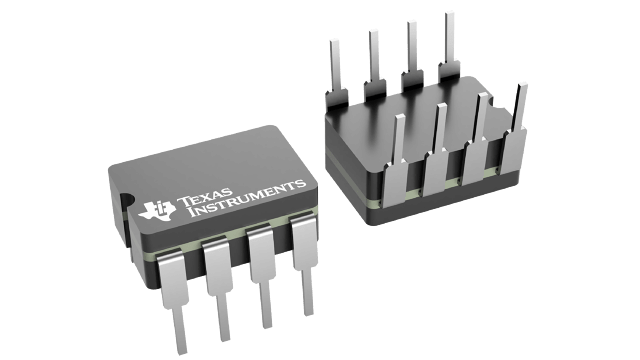

UC1844J883B Texas Instruments - Yeehing Electronics
Current Mode PWM Controller
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 18.609 |
100 — 249 | 16.255 |
250 — 999 | 12.533 |
1,000 + | 7.85 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Minimum Operating Temperature | -55 |
Maximum Operating Temperature | 125 |
Factory Pack Quantity | 1 |
Package | Pins | CDIP (JG) | 8 |
For more information, please refer to datasheet
Documents
UC1844J883B Datasheet |
More Information
The UCx84x series of control integrated circuits provide the features that are necessary to implement off-line or DC-to-DC fixed-frequency current-mode control schemes, with a minimum number of external components. The internally implemented circuits include an undervoltage lockout (UVLO), featuring a start-up current of less than 1 mA, and a precision reference trimmed for accuracy at the error amplifier input. Other internal circuits include logic to ensure latched operation, a pulse-width modulation (PWM) comparator that also provides current-limit control, and a totem-pole output stage that is designed to source or sink high-peak current. The output stage, suitable for driving N-channel MOSFETs, is low when it is in the off state.
