Texas Instruments

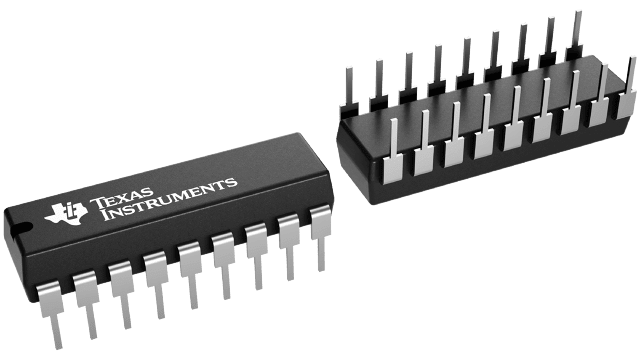

UC2526AN
UC2526AN
Couldn't load pickup availability
UC2526AN Texas Instruments - Yeehing Electronics
35V, Dual 0.2A 600KHz PWM controller with -25C to 85C
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.929 |
| 100 — 249 | 2.567 |
| 250 — 999 | 1.799 |
| 1,000 + | 1.01 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Controllers |
| RoHS | Y |
| Topology | Boost, Flyback, Forward, Full-Bridge, Half-Bridge, Push-Pull |
| Number of Outputs | 2 Output |
| Switching Frequency | 450 kHz |
| Duty Cycle - Max | 50 % |
| Output Current | 200 mA |
| Minimum Operating Temperature | - 25 C |
| Maximum Operating Temperature | + 85 C |
| Mounting Style | Through Hole |
| Package / Case | PDIP-18 |
| Packaging | Tube |
| Height | 4.57 mm |
| Length | 22.48 mm |
| Operating Temperature Range | - 25 C to + 85 C |
| Series | UC2526A |
| Type | Voltage Mode PWM Controllers |
| Brand | Texas Instruments |
| Fall Time | 100 ns |
| Product Type | Switching Controllers |
| Rise Time | 300 ns |
| Factory Pack Quantity | 20 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.042544 oz |
For more information, please refer to datasheet
Documents
| UC2526AN Datasheet |
More Information
The UC1526A Series are improved-performance pulse-width modulator circuits intended for direct replacement of equivalent non- x93Ax94 versions in all applications. Higher frequency operation has been enhanced by several significant improvements including: a more accurate oscillator with less minimum dead time, reduced circuit delays (particularly in current limiting), and an improved output stage with negligible cross-conduction current. Additional improvements include the incorporation of a precision, band-gap reference generator, reduced overall supply current, and the addition of thermal shutdown protection.
