UC2851N Texas Instruments - Yeehing Electronics

32V, 1A , 0.5MHz off-line PWM controller , -40C to 85C

Pricing (USD)

Quantity	Unit Price
1 — 99	19.195
100 — 249	16.766
250 — 999	12.927
1,000 +	8.09

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	AC/DC Converters
RoHS	Y
Mounting Style	Through Hole

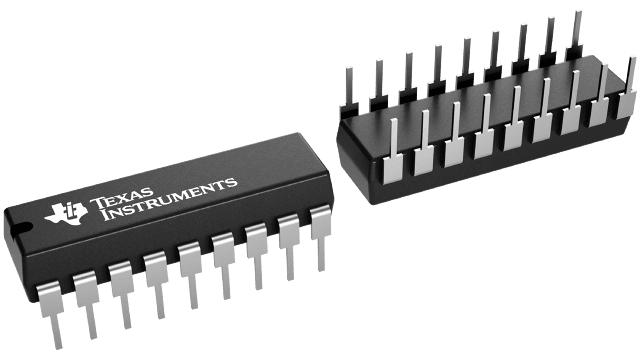

Package / Case	PDIP-18
Output Voltage	40 V
Output Power	1 W
Input / Supply Voltage - Min	8 V
Input / Supply Voltage - Max	30 V
Topology	Boost, Buck, Flyback, Forward
Switching Frequency	50 kHz to 500 kHz
Duty Cycle - Max	46 %
Operating Supply Current	15 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Output Current	500 mA
Series	UC2851
Packaging	Tube
Isolation	Non-Isolated
Number of Outputs	1 Output
Operating Temperature Range	- 40 C to + 85 C
Type	Current Mode
Brand	Texas Instruments
Product Type	AC/DC Converters
Factory Pack Quantity	20
Subcategory	PMIC - Power Management ICs
Unit Weight	0.042544 oz

For more information, please refer to datasheet

Documents

UC2851N Datasheet

More Information

The UC1851 family of PWM controllers are optimized for off-line primary side control. These devices include a high current totem pole output stage and a toggle flip-flop for absolute 50% duty cycle limiting. In all other respects this line of controllers is pin for pin compatible with the UC1841 series. Inclusion of all major housekeeping functions in these high performance controllers makes them ideal for use in cost sensitive applications.
