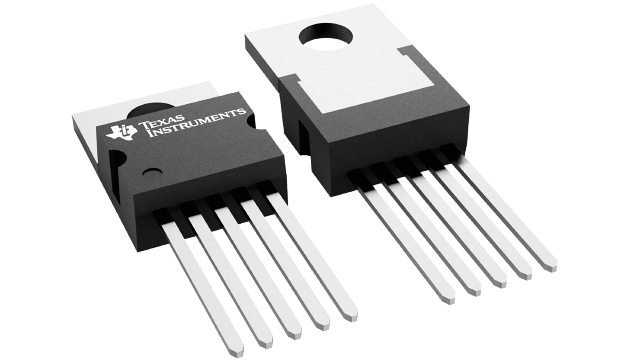

UC2950T Texas Instruments - Yeehing Electronics
4-A half bridge bipolar switch
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 7.932 |
| 100 — 249 | 6.467 |
| 250 — 999 | 5.083 |
| 1,000 + | 3.02 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Gate Drivers |
| RoHS | Y |
| Product | Half-Bridge Drivers |
| Type | Non-Inverting |
| Mounting Style | Through Hole |
| Package / Case | TO-220-5 |
| Number of Drivers | 2 Driver |
| Number of Outputs | 2 Output |
| Output Current | 4 A |
| Configuration | Dual |
| Supply Voltage - Min | 8 V |
| Supply Voltage - Max | 35 V |
| Operating Supply Current | 36 mA |
| Pd - Power Dissipation | 2 W |
| Minimum Operating Temperature | - 20 C |
| Maximum Operating Temperature | + 100 C |
| Series | UC2950 |
| Packaging | Tube |
| Operating Temperature Range | - 20 C to + 100 C |
| Technology | Si |
| Brand | Texas Instruments |
| Logic Type | CMOS, TTL |
| Operating Supply Voltage | 8 V to 35 V |
| Product Type | Gate Drivers |
| Factory Pack Quantity | 50 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.068079 oz |
For more information, please refer to datasheet
Documents
| UC2950T Datasheet |
More Information
This device is a monolithic integrated circuit designed to provide high-current switching with low saturation voltages when activated by low-level logic signals. Source and sink switches may be independently activated without regard to timing as a built-in interlock will keep the sink off if the source is on.
