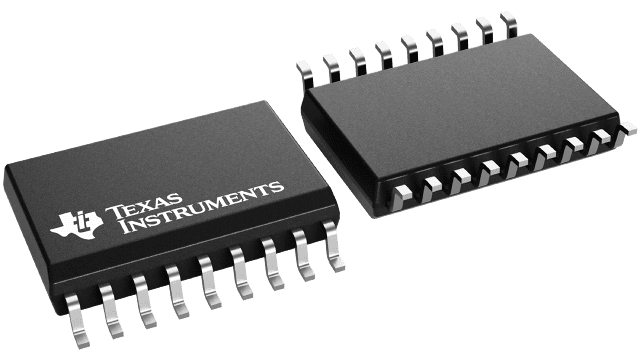

UC3526ADW Texas Instruments - Yeehing Electronics
35V, Dual 0.2A 600KHz PWM controller with 0C to 70C
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 2.626 |
| 100 — 249 | 2.301 |
| 250 — 999 | 1.613 |
| 1,000 + | 0.91 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Switching Controllers |
| RoHS | Y |
| Topology | Boost, Buck, Flyback, Forward, Full-Bridge, Half-Bridge, Push-Pull |
| Number of Outputs | 2 Output |
| Switching Frequency | 450 kHz |
| Duty Cycle - Max | 50 % |
| Output Voltage | 5.10 V |
| Output Current | 200 mA |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Mounting Style | SMD/SMT |
| Package / Case | SOIC-Wide-18 |
| Packaging | Tube |
| Height | 2.35 mm |
| Length | 11.62 mm |
| Operating Temperature Range | 0 C to + 70 C |
| Series | UC3526A |
| Type | Voltage Mode PWM Controllers |
| Brand | Texas Instruments |
| Fall Time | 100 ns |
| Moisture Sensitive | Yes |
| Product Type | Switching Controllers |
| Rise Time | 300 ns |
| Factory Pack Quantity | 40 |
| Subcategory | PMIC - Power Management ICs |
| Unit Weight | 0.019256 oz |
For more information, please refer to datasheet
Documents
| UC3526ADW Datasheet |
More Information
