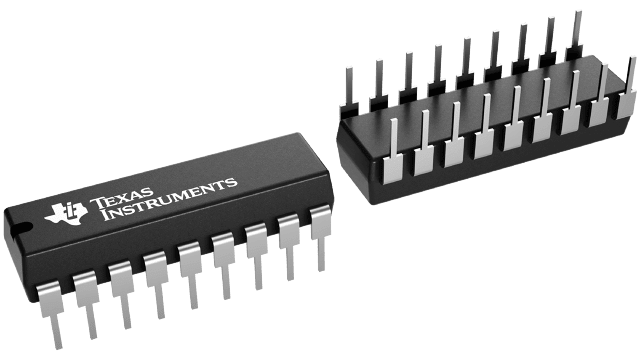

UC3526AN Texas Instruments - Yeehing Electronics

35V, Dual 0.2A 600KHz PWM controller with 0C to 70C

Pricing (USD)

Quantity	Unit Price
1 — 99	None
100 — 249	None
250 — 999	None
1,000 +	None

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Controllers
RoHS	Y
Topology	Boost, Buck, Flyback, Forward, Full-Bridge, Half-Bridge, Push-Pull
Number of Outputs	2 Output
Switching Frequency	450 kHz
Duty Cycle - Max	50 %
Output Voltage	5.10 V
Output Current	200 mA
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 70 C
Mounting Style	Through Hole
Package / Case	PDIP-18
Packaging	Tube
Height	4.57 mm
Length	22.48 mm
Operating Temperature Range	0 C to + 70 C
Series	UC3526A
Type	Voltage Mode PWM Controllers
Brand	Texas Instruments
Fall Time	100 ns
Product Type	Switching Controllers
Rise Time	300 ns
Factory Pack Quantity	20
Subcategory	PMIC - Power Management ICs
Unit Weight	0.042544 oz

For more information, please refer to datasheet

Documents

UC3526AN Datasheet

More Information

The UC1526A Series are improved-performance pulse-width modulator circuits intended for direct replacement of equivalent non- x93Ax94 versions in all applications. Higher frequency operation has been enhanced by several significant improvements including: a more accurate oscillator with less minimum dead time, reduced circuit delays (particularly in current limiting), and an improved output stage with negligible cross-conduction current. Additional improvements include the incorporation of a precision, band-gap reference generator, reduced overall supply current, and the addition of thermal shutdown protection.
