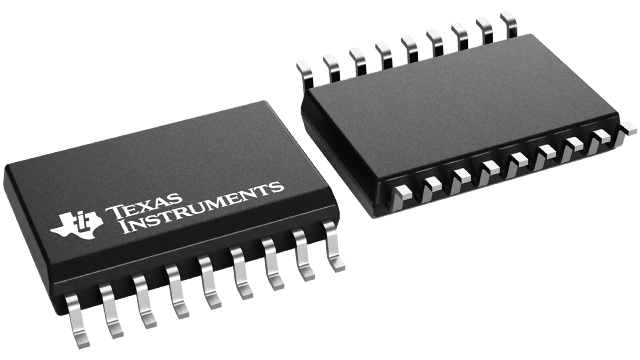

UC3526DW Texas Instruments - Yeehing Electronics

35V, Dual 0.1A 400KHz PWM controller with 0C to 70C

Pricing (USD)

Quantity	Unit Price
1 — 99	2.763
100 — 249	2.421
250 — 999	1.698
1,000 +	0.96

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Controllers
RoHS	Y
Topology	Boost, Flyback, Forward, Full-Bridge, Half-Bridge, Push-Pull
Number of Outputs	2 Output
Switching Frequency	450 kHz
Duty Cycle - Max	50 %
Output Current	100 mA
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 70 C
Mounting Style	SMD/SMT
Package / Case	SOIC-Wide-18
Packaging	Reel
Height	2.35 mm
Length	11.62 mm
Operating Temperature Range	0 C to + 70 C
Series	UC3526
Type	Voltage Mode PWM Controllers
Brand	Texas Instruments
Fall Time	100 ns
Moisture Sensitive	Yes
Product Type	Switching Controllers
Rise Time	300 ns
Factory Pack Quantity	2000
Subcategory	PMIC - Power Management ICs

For more information, please refer to datasheet

Documents

UC3526DW Datasheet

More Information

The UC1526 is a high performance monolithic pulse width modulator circuit designed for fixed-frequency switching regulators and other power control applications. Included in an 18-pin dual-in-line package are a temperature compensated voltage reference, sawtooth oscillator, error amplifier, pulse width modulator, pulse metering and setting logic, and two low impedance power drivers. Also included are protective features such as soft-start and under-voltage lockout, digital current limiting, double pulse inhibit, a data latch for single pulse metering, adjustable deadtime, and provision for symmetry correction inputs. For ease of interface, all digital control ports are TTL and B-series CMOS compatible. Active LOW logic design allows wired-OR connections for maximum flexibility. This versatile device can be used to implement single-ended or push-pull switching regulators of either polarity, both transformerless and transformer coupled. The UC1526 is characterized for operation over the full military temperature range of -55°C to +125°C. The UC2526 is characterized for operation from -25°C to +85°C, and the UC3526 is characterized for operation from 0° to +70°C.
