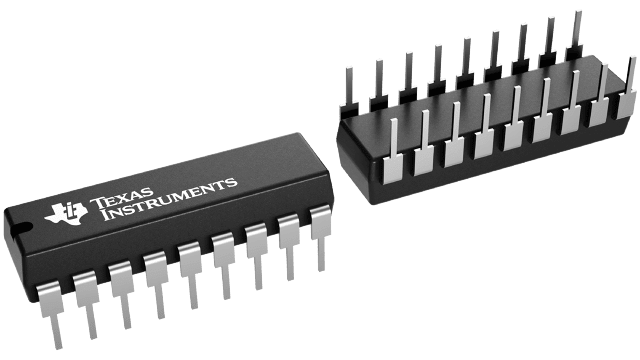

UC3841N Texas Instruments - Yeehing Electronics

32V, 1A , 0.5MHz off-line PWM controller , 0C to 70C

Pricing (USD)

Quantity	Unit Price
1 — 99	13.22
100 — 249	11.548
250 — 999	8.904
1,000 +	5.57

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Controllers
RoHS	Y
Topology	Boost, Flyback, Forward
Number of Outputs	1 Output
Switching Frequency	450 kHz
Duty Cycle - Max	95 %
Output Current	1 A
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 70 C
Mounting Style	Through Hole
Package / Case	PDIP-18
Packaging	Tube
Operating Temperature Range	0 C to + 70 C
Series	UC3841
Type	Current Mode PWM Controllers
Brand	Texas Instruments
Product Type	Switching Controllers
Factory Pack Quantity	20
Subcategory	PMIC - Power Management ICs
Unit Weight	0.042544 oz

For more information, please refer to datasheet

Documents

UC3841N Datasheet

More Information

The UC1841 family of PWM controllers has been designed to increase the level of versatility while retaining all of the performance features of the earlier UC1840 devices. While still optimized for highly-efficient boot-strapped primary-side operation in forward or flyback power converters, the UC1841 is equally adept in implementing both low and high voltage input DC to DC converters. Important performance features include a low-current starting circuit, linear feed-forward for constant volt-second operation, and compatibility with either voltage or current mode topologies.
