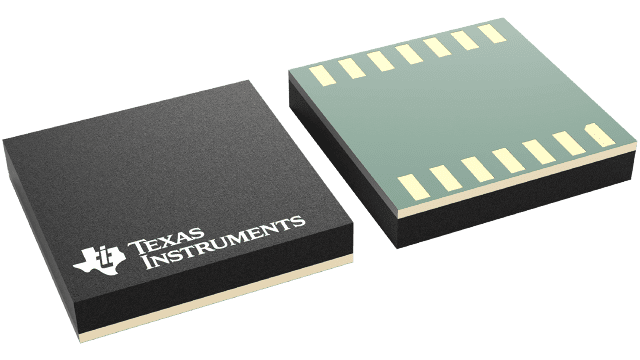

UCC20225NPLR Texas Instruments - Yeehing Electronics
2.5kVrms, 4A/6A dual-channel isolated gate driver with single PWM input, 8V UVLO & LGA package
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 3.072 |
| 100 — 249 | 2.692 |
| 250 — 999 | 1.888 |
| 1,000 + | 6.86 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Gate Drivers |
| RoHS | Y |
| Product | Isolated Gate Drivers |
| Type | High Side, Low Side |
| Mounting Style | SMD/SMT |
| Package / Case | VLGA-13 |
| Number of Drivers | 2 Driver |
| Number of Outputs | 2 Output |
| Output Current | 6 A |
| Rise Time | 6 ns |
| Fall Time | 7 ns |
| Supply Voltage - Min | 3 V |
| Supply Voltage - Max | 18 V |
| Propagation Delay - Max | 30 ns |
| Operating Supply Current | 2.5 mA |
| Pd - Power Dissipation | 1.25 W |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | UCC20225 |
| Packaging | Reel |
| Operating Temperature Range | - 40 C to + 125 C |
| Output Voltage | 9.2 V to 25 V |
| Technology | Si |
| Brand | Texas Instruments |
| Shutdown | No Shutdown |
| Development Kit | UCC21225AEVM-365 |
| Moisture Sensitive | Yes |
| Product Type | Gate Drivers |
| Factory Pack Quantity | 3000 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| UCC20225NPLR Datasheet |
More Information
The UCC20225 is an isolated single input, dual-output gate driver with 4-A source and 6-A sink peak current in a 5-mm x 5-mm LGA-13 package. It is designed to drive power transistors up to 5-MHz with best-in-class propagation delay and pulse-width distortion.
