UCC20225NPLT


YeeHing #: Y012-UCC20225NPLT
Inventory: 3400

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

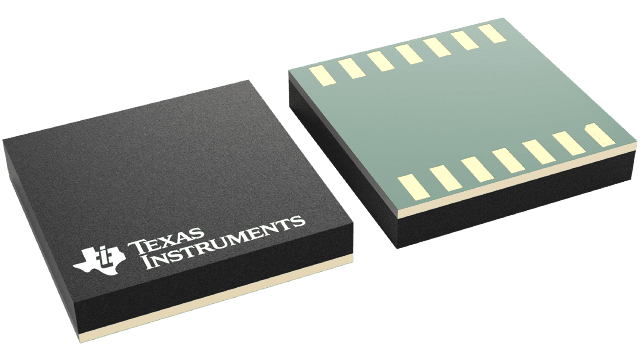

UCC20225NPLT Texas Instruments - Yeehing Electronics

2.5kVrms, 4A/6A dual-channel isolated gate driver with single PWM input, 8V UVLO & LGA package

Pricing (USD)

Quantity Unit Price
1 — 99 3.687
100 — 249 3.23
250 — 999 2.265
1,000 + 1.28

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Gate Drivers
RoHS Y
Product Isolated Gate Drivers
Type High Side, Low Side
Mounting Style SMD/SMT
Package / Case VLGA-13
Number of Drivers 2 Driver
Number of Outputs 2 Output
Output Current 6 A
Rise Time 6 ns
Fall Time 7 ns
Supply Voltage - Min 3 V
Supply Voltage - Max 18 V
Propagation Delay - Max 30 ns
Operating Supply Current 2.5 mA
Pd - Power Dissipation 1.25 W
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Series UCC20225
Packaging Reel
Operating Temperature Range - 40 C to + 125 C
Output Voltage 9.2 V to 25 V
Technology Si
Brand Texas Instruments
Shutdown No Shutdown
Development Kit UCC21225AEVM-365
Moisture Sensitive Yes
Product Type Gate Drivers
Factory Pack Quantity 250
Subcategory PMIC - Power Management ICs

For more information, please refer to datasheet

Documents

UCC20225NPLT Datasheet

More Information

The UCC20225 is an isolated single input, dual-output gate driver with 4-A source and 6-A sink peak current in a 5-mm x 5-mm LGA-13 package. It is designed to drive power transistors up to 5-MHz with best-in-class propagation delay and pulse-width distortion.
