UCC21225ANPLR Texas Instruments - Yeehing Electronics

2.5kVrms, 4A/6A dual-channel isolated gate driver with dual input, 5V UVLO & LGA package

Pricing (USD)

Quantity	Unit Price
1 — 99	3.072
100 — 249	2.692
250 — 999	1.888
1,000 +	1.06

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Gate Drivers
RoHS	Y
Product	Isolated Gate Drivers
Type	High Side, Low Side
Mounting Style	SMD/SMT
Package / Case	VLGA-13
Number of Drivers	2 Driver
Number of Outputs	2 Output
Output Current	6 A
Rise Time	6 ns
Fall Time	7 ns
Supply Voltage - Min	3 V
Supply Voltage - Max	18 V
Propagation Delay - Max	30 ns
Operating Supply Current	2 mA
Pd - Power Dissipation	1.25 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Series	UCC21225A
Packaging	Reel
Operating Temperature Range	- 40 C to + 125 C
Output Voltage	6 V to 25 V
Technology	Si
Brand	Texas Instruments
Shutdown	No Shutdown
Development Kit	UCC21225AEVM-365
Moisture Sensitive	Yes
Product Type	Gate Drivers
Factory Pack Quantity	3000
Subcategory	PMIC - Power Management ICs

For more information, please refer to datasheet

Documents

UCC21225ANPLR Datasheet

More Information

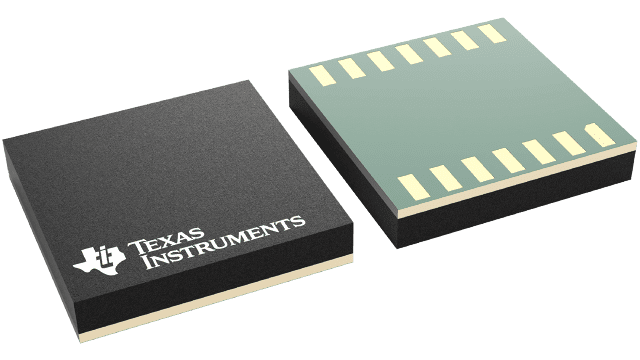

The UCC21225A is an isolated dual-channel gate driver with 4-A source and 6-A sink peak current in a 5-mm x 5-mm LGA-13 package. It is designed to drive power transistors up to 5-MHz with best-in-class propagation delay and pulse-width distortion.
