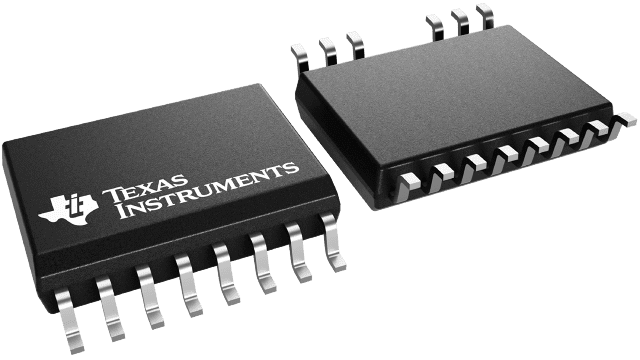

UCC21530QDWKRQ1 Texas Instruments - Yeehing Electronics
Automotive 4-A, 6-A, 5.7-kVRMS, isolated dual-channel gate driver with EN and DT pins for IGBT/SiC
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 4.508 |
| 100 — 249 | 3.675 |
| 250 — 999 | 2.889 |
| 1,000 + | 10.97 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Gate Drivers |
| RoHS | Y |
| Product | Isolated Gate Drivers |
| Type | High Side, Low Side |
| Mounting Style | SMD/SMT |
| Package / Case | SOIC-14 |
| Number of Drivers | 2 Driver |
| Number of Outputs | 2 Output |
| Output Current | 58 mA |
| Rise Time | 6 ns |
| Fall Time | 7 ns |
| Supply Voltage - Min | 3 V |
| Supply Voltage - Max | 18 V |
| Propagation Delay - Max | 30 ns |
| Operating Supply Current | 3 mA |
| Pd - Power Dissipation | 1810 mW |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Series | UCC21530-Q1 |
| Packaging | Reel |
| Output Voltage | 25 V |
| Brand | Texas Instruments |
| Logic Type | CMOS, TTL |
| Product Type | Gate Drivers |
| Rds On - Drain-Source Resistance | 5 Ohms |
| Factory Pack Quantity | 2000 |
| Subcategory | PMIC - Power Management ICs |
For more information, please refer to datasheet
Documents
| UCC21530QDWKRQ1 Datasheet |
More Information
The UCC21530-Q1 is an isolated dual-channel gate driver with 4-A source and 6-A sink peak current. It is designed to drive IGBTs, Si MOSFETs, and SiC MOSFETs up to 5-MHz with best-in-class propagation delay and pulse-width distortion.
