UCC21540DWKR


YeeHing #: Y012-UCC21540DWKR
Inventory: 6200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

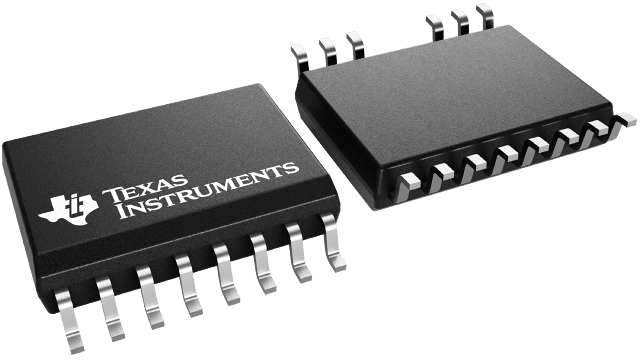

UCC21540DWKR Texas Instruments - Yeehing Electronics

5.7kVrms 4A/6A dual-channel isolated gate driver with dual inputs, DT pin & 8V UVLO in DW or DWK pkg

Pricing (USD)

Quantity Unit Price
1 — 99 1.449
100 — 249 1.197
250 — 999 0.86
1,000 + 0.45

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Gate Drivers
RoHS Y
Product Isolated Gate Drivers
Type High Side, Low Side
Mounting Style SMD/SMT
Package / Case SOIC-14
Number of Drivers 2 Driver
Number of Outputs 2 Output
Output Current 73 mA
Rise Time 5 ns
Fall Time 6 ns
Supply Voltage - Min 3 V
Supply Voltage - Max 5.5 V
Propagation Delay - Max 40 ns
Operating Supply Current 2.5 mA
Pd - Power Dissipation 1775 mW
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Series UCC21540
Packaging Reel
Output Voltage 18 V
Technology GaN
Brand Texas Instruments
Logic Type CMOS, TTL
Product Type Gate Drivers
Rds On - Drain-Source Resistance 10 Ohms
Factory Pack Quantity 2000
Subcategory PMIC - Power Management ICs

For more information, please refer to datasheet

Documents

UCC21540DWKR Datasheet

More Information

The UCC2154x is an isolated dual channel gate driver family designed with up to 4-A/6-A peak source/sink current to drive power MOSFET, IGBT, and GaN transistors. UCC2154x in DWK package also offers 3.3-mm minimum channel-to-channel spacing which facilitates higher bus voltage.
