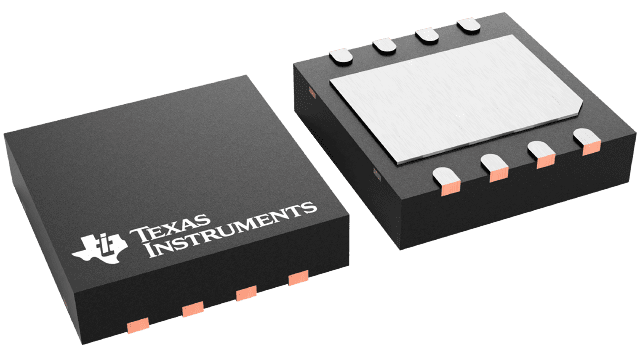

UCC25230DRMT Texas Instruments - Yeehing Electronics

12V to 105V Input, 0.2A Output Switching Converter

Pricing (USD)

Quantity	Unit Price
1 — 99	3.765
100 — 249	3.299
250 — 999	2.313
1,000 +	1.30

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Voltage Regulators
RoHS	Y
Mounting Style	SMD/SMT
Package / Case	VSON-8
Output Voltage	3.3 V to 90 V
Output Current	220 mA
Input Voltage MAX	105 V
Topology	Buck, Flyback
Input Voltage MIN	12 V
Switching Frequency	380 kHz
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Series	UCC25230
Packaging	Reel
Input Voltage	12 V to 105 V
Operating Temperature Range	- 40 C to + 125 C
Brand	Texas Instruments
Development Kit	UCC25230EVM-754
Operating Supply Current	5 mA
Product Type	Switching Voltage Regulators
Factory Pack Quantity	250
Subcategory	PMIC - Power Management ICs
Supply Voltage - Min	12 V
Unit Weight	0.000847 oz

For more information, please refer to datasheet

Documents

UCC25230DRMT Datasheet

More Information

The UCC25230 is a highly integrated PWM converter operating as an isolated forward flyback. It has high-side and low-side power switches integrated and the control circuit with all key converter functions included. The power stage requires only one- or multiple winding coupled inductor and output capacitors for the complete solution. Voltage-mode feed-forward control with external compensation allows optimal output filter selection over wide input voltage range. The UCC25230 has fixed frequency set internally at 380 kHz. It also includes input voltage UVLO and OVLO comparators with hysteresis and input-good, open-collector output signal which can be used to enable PWM controllers.
