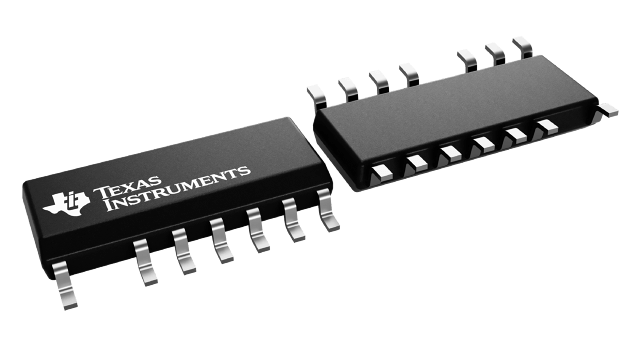

UCC25630-1DDBR Texas Instruments - Yeehing Electronics

Wide vin LLC resonant controller with high-voltage start up enabling ultra-low standby power

Pricing (USD)

Quantity	Unit Price
1 — 99	2.505
100 — 249	2.195
250 — 999	1.539
1,000 +	0.87

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Controllers
RoHS	Y
Topology	Half Bridge, Resonant
Number of Outputs	2 Output
Switching Frequency	35 kHz to 1 MHz
Duty Cycle - Max	50 %
Input Voltage	13 V to 26 V
Output Voltage	12 V
Output Current	600 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	SOIC-14
Packaging	Reel
Description/Function	LLC resonant controller
Isolation	Isolated
Operating Temperature Range	- 40 C to + 125 C
Product	Resonant Controllers
Series	UCC256301
Brand	Texas Instruments
Shutdown	Shutdown
Development Kit	UCC25630-1EVM-291
Fall Time	25 ns
Moisture Sensitive	Yes
Operating Supply Voltage	13 V to 26 V
Product Type	Switching Controllers
Rise Time	35 ns
Factory Pack Quantity	2500
Subcategory	PMIC - Power Management ICs
Unit Weight	0.005965 oz

For more information, please refer to datasheet

Documents

UCC25630-1DDBR Datasheet

More Information

The UCC256301 is a fully featured LLC controller with integrated high-voltage gate driver. It has been designed to pair with a PFC stage to provide a complete power system using a minimum of external components. The resulting power system is designed to meet the most stringent requirements for standby power without the need for a separate standby power converter, and with PFC stage running all the time. UCC256301 includes a range of features designed to make LLC converter operation well controlled and robust. This device aims to unburden the LLC designer and allow mainstream applications to benefit from efficiency advantages of the LLC topology.
