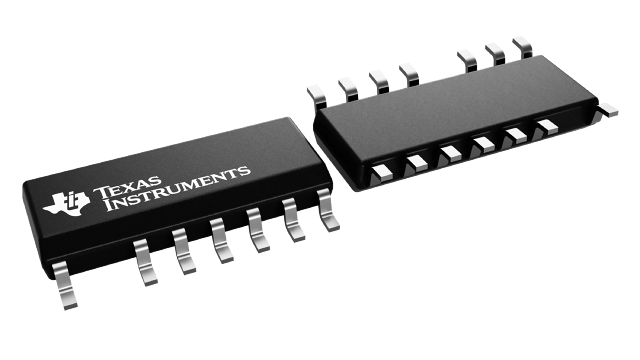

UCC25630-2DDBR Texas Instruments - Yeehing Electronics

LLC resonant controller with high voltage start up enabling low standby power

Pricing (USD)

Quantity	Unit Price
1 — 99	2.424
100 — 249	2.124
250 — 999	1.489
1,000 +	0.84

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Switching Controllers
RoHS	Y
Topology	Half-Bridge, Resonant
Number of Outputs	1 Output
Switching Frequency	35 kHz to 1 MHz
Duty Cycle - Max	50 %
Input Voltage	15 V
Output Voltage	12 V
Output Current	600 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Mounting Style	SMD/SMT
Package / Case	SOIC-14
Packaging	Reel
Description/Function	LLC resonant controller
Operating Temperature Range	- 40 C to + 125 C
Product	Resonant Controllers
Series	UCC256302
Brand	Texas Instruments
Shutdown	Shutdown
Fall Time	25 ns
Moisture Sensitive	Yes
Operating Supply Current	2.2 mA
Operating Supply Voltage	15 V
Product Type	Switching Controllers
Rise Time	35 ns
Factory Pack Quantity	2500
Subcategory	PMIC - Power Management ICs
Unit Weight	0.005965 oz

For more information, please refer to datasheet

Documents

UCC25630-2DDBR Datasheet

More Information

The UCC256302 is a fully featured LLC controller with integrated high-voltage gate driver. It has been designed for use in offline AC-DC or isolated DC-DC to provide a complete power system using a minimum of external components. The resulting power system is designed to meet the most stringent requirements for standby power without the need for a separate standby power converter.
